DORMER S2363/8 Carbide Cutters

Product Code: S2363/8

$137.09$124.63 Ex. GST

Product Code: S2363/8 SKU S2363/8 Categories , ,
DORMER S2363/8 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

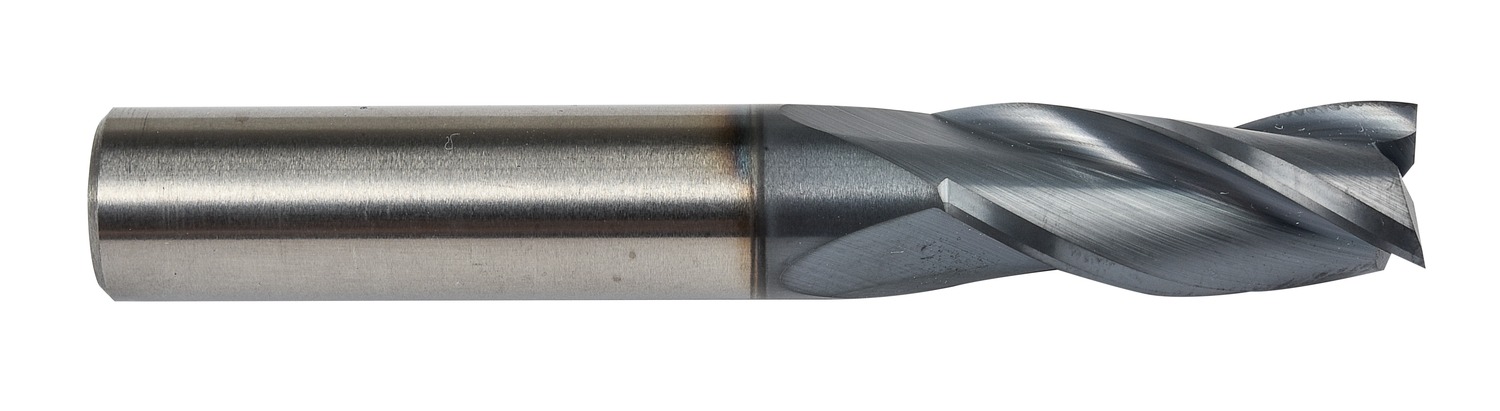

Long series end mill with 4 flutes, diameter 3/8″ with 1.1/8″ length of cut and 3″ overall length, according to DORMER standard with a 3/8″ plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

Additional information

Weight 0.1331 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760848678
Product number (SAP): 86036110
Ordering code ANSI: S2363/8
Gross weight – grams: 69
Connection diameter – fractional inch (DCON MS): 3/8
Connection diameter – millimeter (DCON MS): 9.53 mm
Cutting diameter – fractional inch (DC): 3/8
Cutting diameter – millimeter (DC): 9.53 mm
Depth of cut maximum – fractional inch (APMX): 1.1/8
Overall length – fractional inch (OAL): 3"
Overall length – millimeter (OAL): 76.2 mm
ISO: S2363/8

Brand

DORMER
