DORMER S2365/16 Carbide Cutters

Product Code: S2365/16

$125.76$114.33 Ex. GST

Product Code: S2365/16 SKU S2365/16 Categories , ,
DORMER S2365/16 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

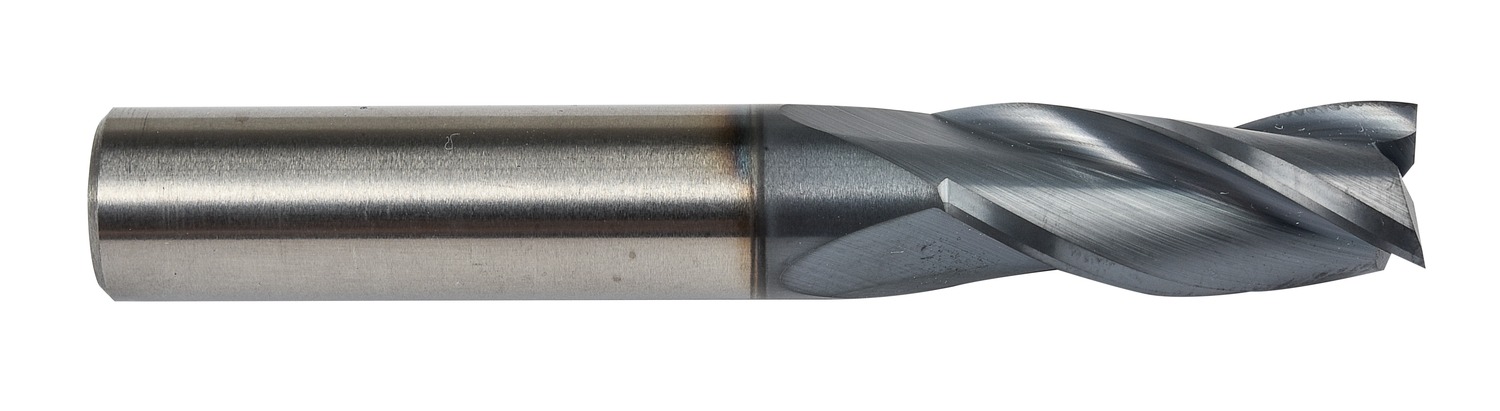

Long series end mill with 4 flutes, diameter 5/16″ with 1.1/8″ length of cut and 3″ overall length, according to DORMER standard with a 5/16″ plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

Additional information

Weight 0.1221 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760848661
Product number (SAP): 86036109
Ordering code ANSI: S2365/16
Gross weight – grams: 50
Connection diameter – fractional inch (DCON MS): 5/16
Connection diameter – millimeter (DCON MS): 7.94 mm
Cutting diameter – fractional inch (DC): 5/16
Cutting diameter – millimeter (DC): 7.94 mm
Depth of cut maximum – fractional inch (APMX): 1.1/8
Overall length – fractional inch (OAL): 3"
Overall length – millimeter (OAL): 76.2 mm
ISO: S2365/16

Brand

DORMER
