DORMER S2365/8 Carbide Cutters

Product Code: S2365/8

$325.17$295.61 Ex. GST

Product Code: S2365/8 SKU S2365/8 Categories , ,

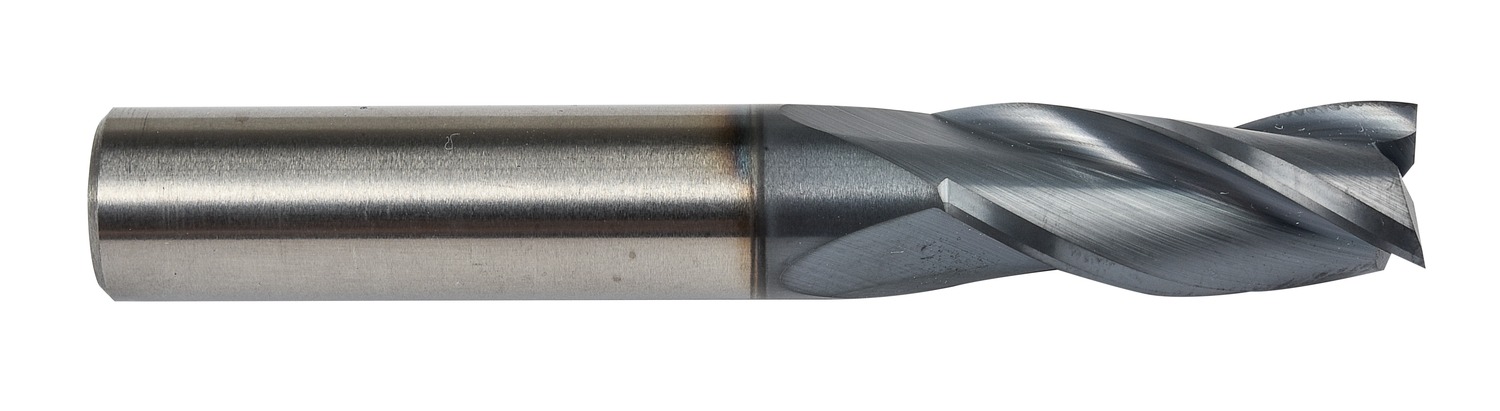

DORMER S2365/8 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Long series end mill with 4 flutes, diameter 5/8″ with 2.1/4″ length of cut and 5″ overall length, according to DORMER standard with a 5/8″ plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

Additional information

Weight 0.3157 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760848708
Product number (SAP): 86036113
Ordering code ANSI: S2365/8
Gross weight – grams: 225
Connection diameter – fractional inch (DCON MS): 5/8
Connection diameter – millimeter (DCON MS): 15.88 mm
Cutting diameter – fractional inch (DC): 5/8
Cutting diameter – millimeter (DC): 15.88 mm
Depth of cut maximum – fractional inch (APMX): 2.1/4
Overall length – fractional inch (OAL): 5"
Overall length – millimeter (OAL): 127 mm
ISO: S2365/8

Brand

DORMER
