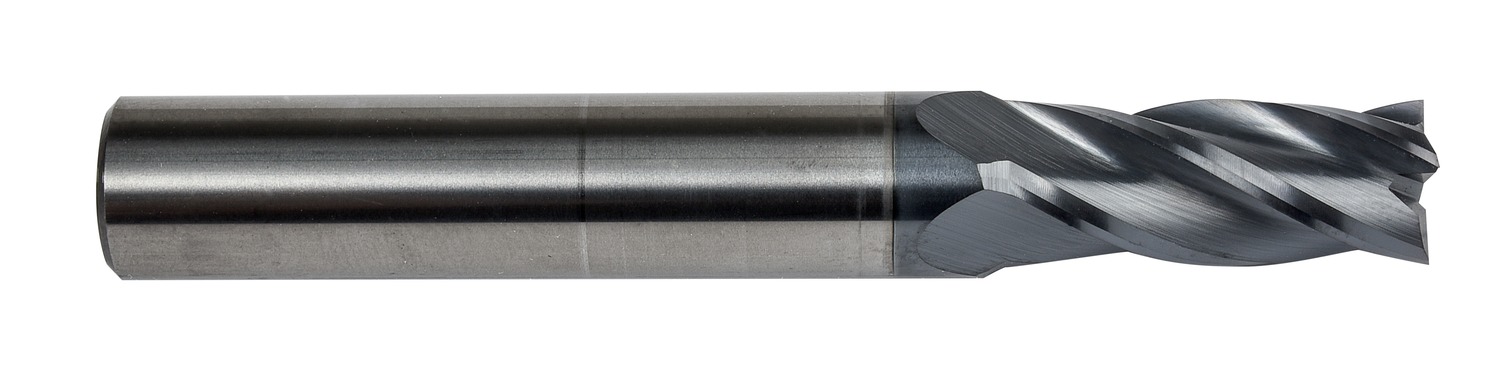

DORMER S2371 Carbide Cutters

Description

Extra long series end mill with 4 flutes, diameter 1″ with 3″ length of cut and 6″ overall length, according to DORMER standard with a 1″ plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

Additional information

Weight	0.9977 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760848913 Product number (SAP): 86036134 Ordering code ANSI: S2371 Gross weight – grams: 930 Connection diameter – fractional inch (DCON MS): 1" Connection diameter – millimeter (DCON MS): 25.4 mm Cutting diameter – fractional inch (DC): 1" Cutting diameter – millimeter (DC): 25.4 mm Depth of cut maximum – fractional inch (APMX): 3" Overall length – fractional inch (OAL): 6" Overall length – millimeter (OAL): 152.4 mm ISO: S2371

Need Technical Advice?

Description

Additional information

Brand

DORMER
