DORMER S2385/32 Carbide Cutters

Product Code: S2385/32

$56.65$51.50 Ex. GST

Product Code: S2385/32 SKU S2385/32 Categories , ,
DORMER S2385/32 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

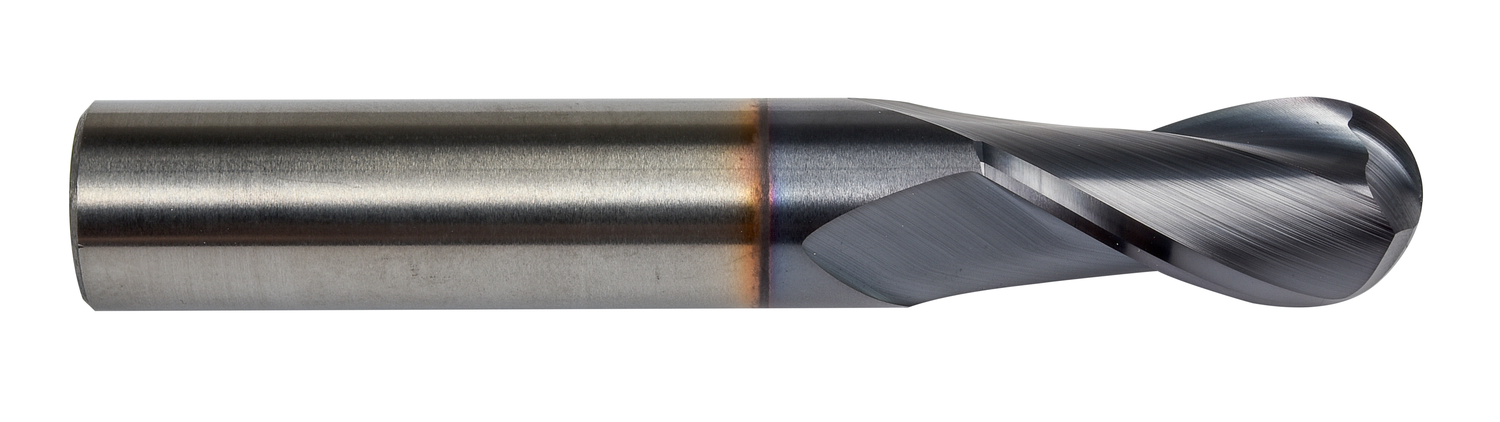

Regular length ball-nose end mill with 4 flutes, diameter 5/32″ with 9/16″ length of cut, 2″ overall length and 5/64″ full profile radius, according to DORMER standard with a 3/16″ plain shank, solid carbide with TiAlN coating, 30° helix for copy milling in steel and cast steel, stainless steel and cast-iron

Additional information

Weight 0.055 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760849071
Product number (SAP): 86036150
Ordering code ANSI: S2385/32
Gross weight – grams: 9
With Neck: Yes
Connection diameter – fractional inch (DCON MS): 3/16
Connection diameter – millimeter (DCON MS): 4.76 mm
Cutting diameter – fractional inch (DC): 5/32
Cutting diameter – millimeter (DC): 3.97 mm
Depth of cut maximum – fractional inch (APMX): 9/16
Overall length – fractional inch (OAL): 2"
Overall length – millimeter (OAL): 50.8 mm
ISO: S2385/32

Brand

DORMER
