DORMER S248HA5/16XR.030 Carbide Cutters

Product Code: S248HA5/16XR.030

$103.68$94.25 Ex. GST

Product Code: S248HA5/16XR.030 SKU S248HA5/16XR.030 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

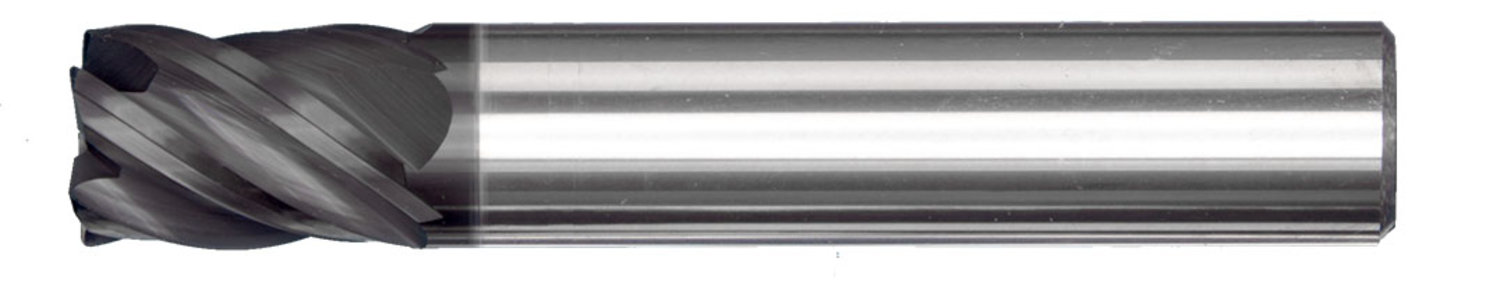

Regular length corner radius end mill with 5 flutes, diameter 5/16″ with 13/16″ length of cut, 2.1/2″ overall length and 0.03″ corner radii, according to DORMER standard with a 5/16″ plain shank, solid carbide with AlTiN coating, unequal helix for shoulder milling, plunging, progressive plunge milling, ramping, helical milling and trochoidal milling in steel and cast steel, stainless steel, cast-iron, high-temperature alloys, chilled, hardened cast-iron and hardened steel <55HRC

Additional information

Weight 0.1007 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760849569
Product number (SAP): 86036199
Ordering code ANSI: S248HA5/16XR.030
Gross weight – grams: 43
Flute helix unequal: Yes
Connection diameter – fractional inch (DCON MS): 5/16
Connection diameter – millimeter (DCON MS): 7.94 mm
Cutting diameter – fractional inch (DC): 5/16
Cutting diameter – millimeter (DC): 7.94 mm
Overall length – fractional inch (OAL): 2.1/2
Overall length – millimeter (OAL): 63.5 mm
ISO: S248HA5/16XR.030

Brand

DORMER
