DORMER S248HA5/8XR.045 Carbide Cutters

Product Code: S248HA5/8XR.045

$380.69$346.08 Ex. GST

Product Code: S248HA5/8XR.045 SKU S248HA5/8XR.045 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

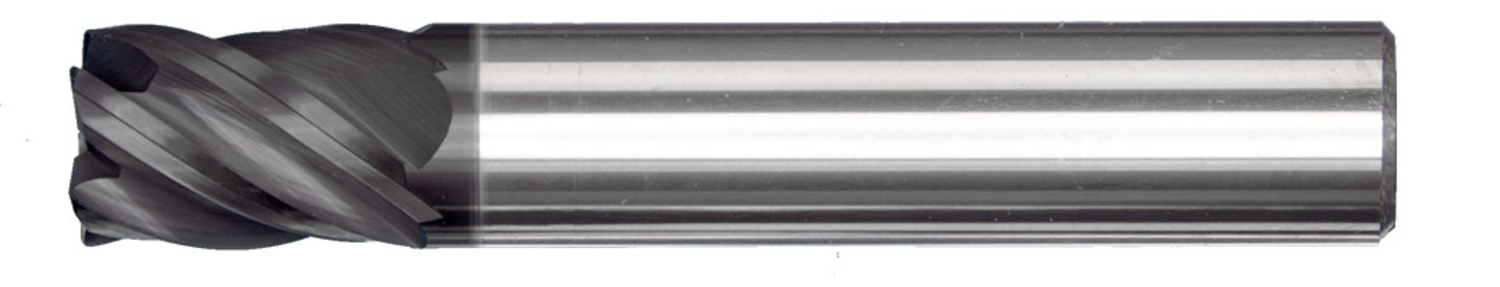

Regular length corner radius end mill with 5 flutes, diameter 5/8″ with 1.1/4″ length of cut, 3.1/2″ overall length and 0.045″ corner radii, according to DORMER standard with a 5/8″ plain shank, solid carbide with AlTiN coating, unequal helix for shoulder milling, plunging, progressive plunge milling, ramping, helical milling and trochoidal milling in steel and cast steel, stainless steel, cast-iron, high-temperature alloys, chilled, hardened cast-iron and hardened steel <55HRC

Additional information

Weight 0.3696 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760849675
Product number (SAP): 86036210
Ordering code ANSI: S248HA5/8XR.045
Gross weight – grams: 231
Flute helix unequal: Yes
Connection diameter – fractional inch (DCON MS): 5/8
Connection diameter – millimeter (DCON MS): 15.88 mm
Cutting diameter – fractional inch (DC): 5/8
Cutting diameter – millimeter (DC): 15.88 mm
Overall length – fractional inch (OAL): 3.1/2
Overall length – millimeter (OAL): 88.9 mm
ISO: S248HA5/8XR.045

Brand

DORMER
