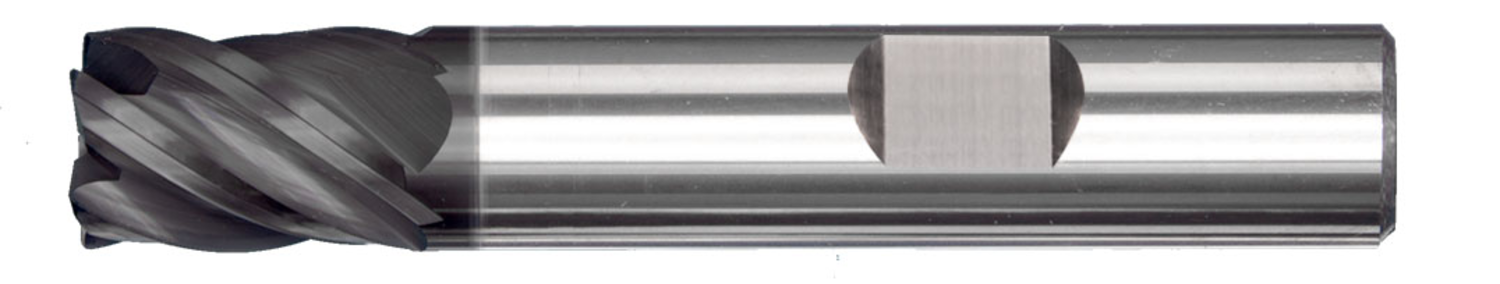

DORMER S248HB3/8XR.030 Carbide Cutters

Product Code: S248HB3/8XR.030

$133.69$121.54 Ex. GST

Product Code: S248HB3/8XR.030 SKU S248HB3/8XR.030 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Regular length corner radius end mill with 5 flutes, diameter 3/8″ with 7/8″ length of cut, 2.1/2″ overall length and 0.03″ corner radii, according to DORMER standard with a 3/8″ Weldon shank, solid carbide with AlTiN coating, unequal helix for shoulder milling, plunging, progressive plunge milling, ramping, helical milling and trochoidal milling in steel and cast steel, stainless steel, cast-iron, high-temperature alloys, chilled, hardened cast-iron and hardened steel <55HRC

Additional information

Weight 0.1298 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760849774
Product number (SAP): 86036220
Ordering code ANSI: S248HB3/8XR.030
Gross weight – grams: 59
Flute helix unequal: Yes
Connection diameter – fractional inch (DCON MS): 3/8
Connection diameter – millimeter (DCON MS): 9.53 mm
Cutting diameter – fractional inch (DC): 3/8
Cutting diameter – millimeter (DC): 9.53 mm
Overall length – fractional inch (OAL): 2.1/2
Overall length – millimeter (OAL): 63.5 mm
ISO: S248HB3/8XR.030

Brand

DORMER
