DORMER S248HB9/16XR.020 Carbide Cutters

Product Code: S248HB9/16XR.020

$300.25$272.95 Ex. GST

Product Code: S248HB9/16XR.020 SKU S248HB9/16XR.020 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

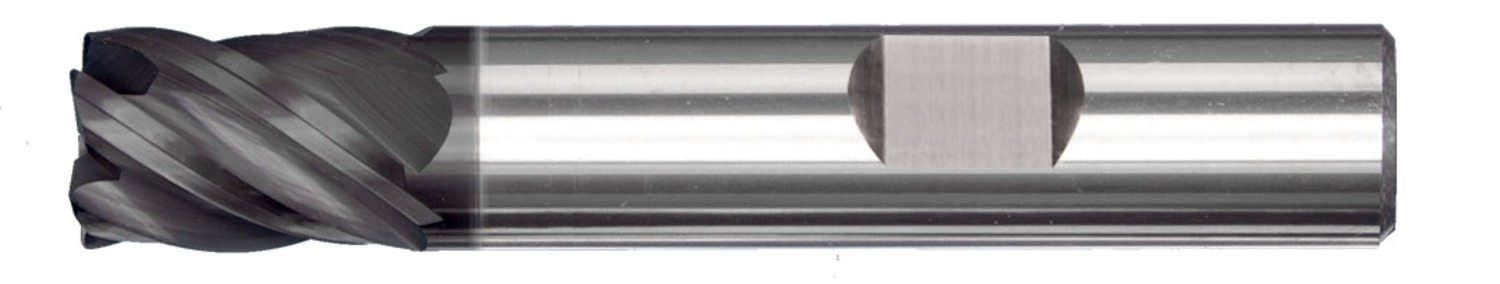

Regular length corner radius end mill with 5 flutes, diameter 9/16″ with 1.1/8″ length of cut, 3.1/2″ overall length and 0.02″ corner radii, according to DORMER standard with a 9/16″ Weldon shank, solid carbide with AlTiN coating, unequal helix for shoulder milling, plunging, progressive plunge milling, ramping, helical milling and trochoidal milling in steel and cast steel, stainless steel, cast-iron, high-temperature alloys, chilled, hardened cast-iron and hardened steel <55HRC

Additional information

Weight 0.2915 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760849835
Product number (SAP): 86036226
Ordering code ANSI: S248HB9/16XR.020
Gross weight – grams: 188
Flute helix unequal: Yes
Connection diameter – fractional inch (DCON MS): 9/16
Connection diameter – millimeter (DCON MS): 14.29 mm
Cutting diameter – fractional inch (DC): 9/16
Cutting diameter – millimeter (DC): 14.29 mm
Overall length – fractional inch (OAL): 3.1/2
Overall length – millimeter (OAL): 88.9 mm
ISO: S248HB9/16XR.020

Brand

DORMER
