DORMER S2604.0 Carbide Cutters

Product Code: S2604.0

$95.17$86.52 Ex. GST

Product Code: S2604.0 SKU S2604.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

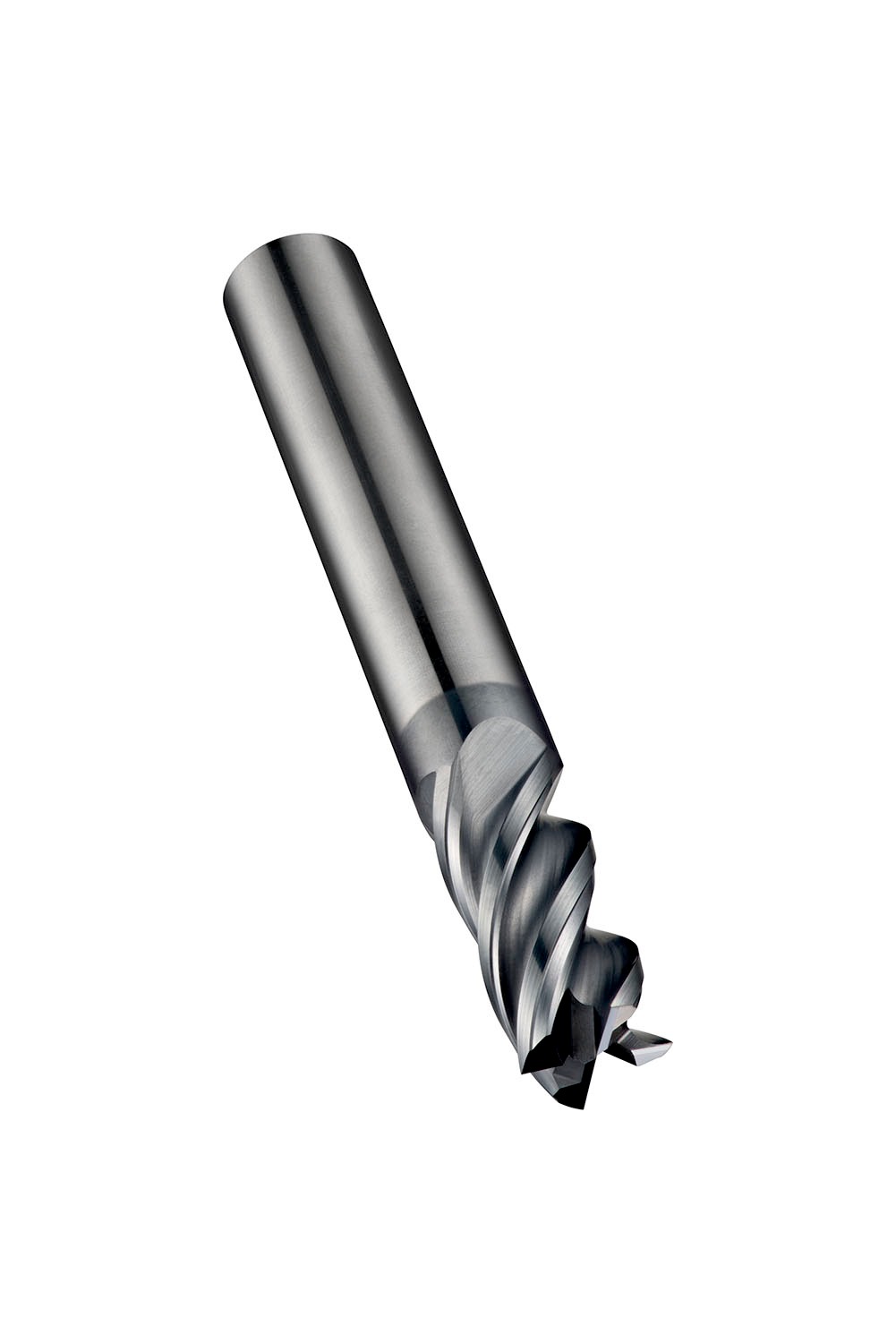

Short series end mill with 4 flutes, diameter 4mm with 12mm length of cut and 57mm overall length, according to DORMER standard with a 6mm plain shank, solid carbide with AlCrN coating, 40° helix with differential pitch and 4° rake angle for shoulder milling and plunging in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel, high-temperature alloys, chilled, hardened cast-iron and hardened steel <55HRC

Additional information

Weight 0.0924 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760684634
Product number (SAP): 86022049
Ordering code ANSI: S2604.0
Gross weight – grams: 24.8
Cutting diameter – millimeter (DC): 4 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 12 mm
Overall length – millimeter (OAL): 57 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 4
With Neck: Yes
ISO: S2604.0

Brand

DORMER
