DORMER S2606.0 Carbide Cutters

Product Code: S2606.0

$97.44$88.58 Ex. GST

Product Code: S2606.0 SKU S2606.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

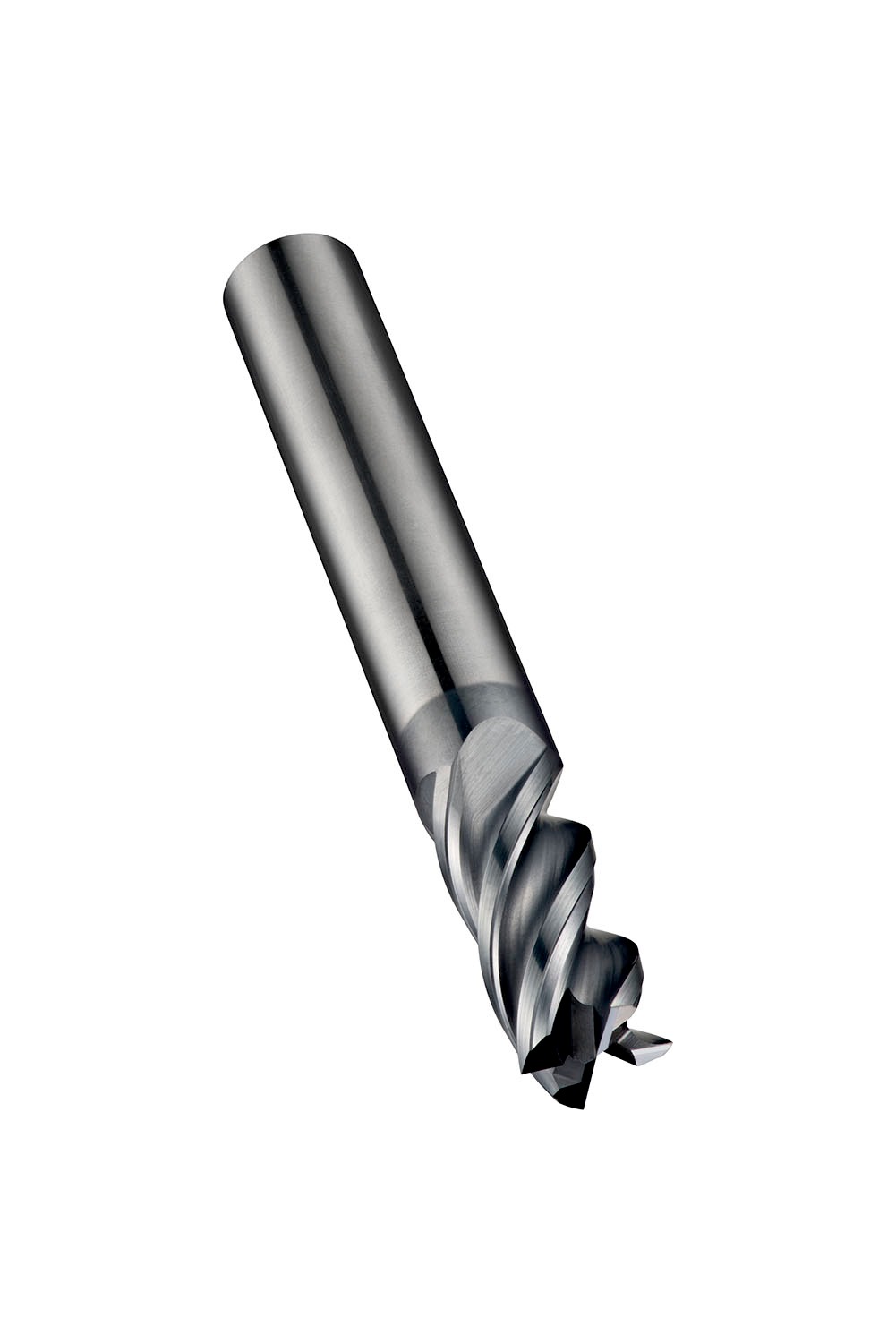

Short series end mill with 4 flutes, diameter 6mm with 13mm length of cut and 57mm overall length, according to DORMER standard with a 6mm plain shank, solid carbide with AlCrN coating, 40° helix with differential pitch and 4° rake angle for shoulder milling and plunging in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel, high-temperature alloys, chilled, hardened cast-iron and hardened steel <55HRC

Additional information

Weight 0.0946 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760684658
Product number (SAP): 86022051
Ordering code ANSI: S2606.0
Gross weight – grams: 27
Cutting diameter – millimeter (DC): 6 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 13 mm
Overall length – millimeter (OAL): 57 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 4
ISO: S2606.0

Brand

DORMER
