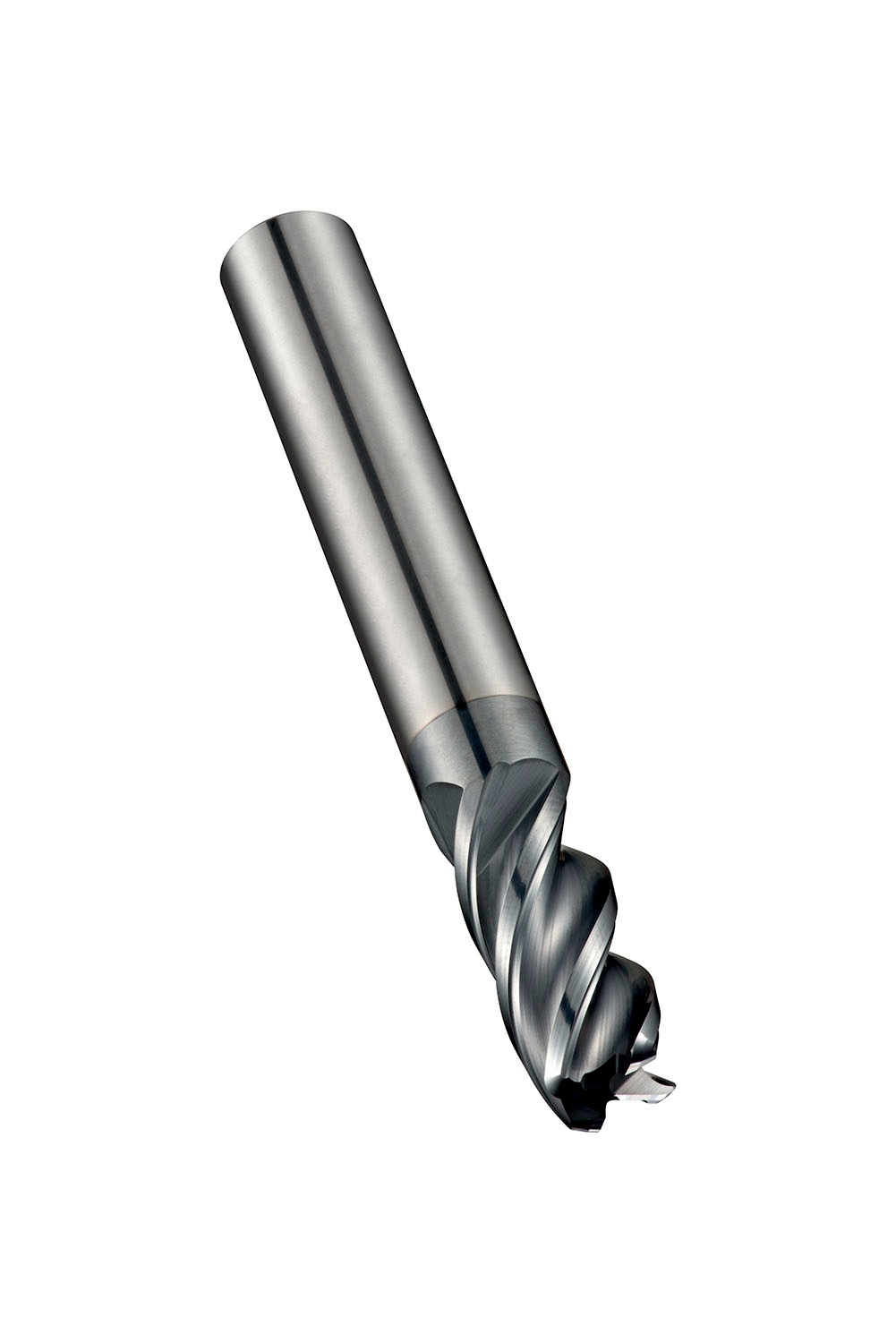

DORMER S26210.0XR2.0 Carbide Cutters

Product Code: S26210.0XR2.0

$213.00$193.64 Ex. GST

Product Code: S26210.0XR2.0 SKU S26210.0XR2.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series corner radius end mill with 4 flutes, diameter 10mm with 22mm length of cut, 72mm overall length and 2mm corner radii, according to DORMER standard with a 10mm plain shank, solid carbide with AlCrN coating, 40° helix with differential pitch and 4° rake angle for shoulder milling, plunging, progressive plunge milling, ramping and helical milling in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel, high-temperature alloys, chilled, hardened cast-iron and hardened steel <55HRC

Additional information

Weight 0.2068 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760684924
Product number (SAP): 86022078
Ordering code ANSI: S26210.0XR2.0
Gross weight – grams: 74.5
Cutting diameter – millimeter (DC): 10 mm
Corner radius – millimeter (RE): 2 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 72 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 4
ISO: S26210.0XR2.0

Brand

DORMER
