DORMER S26212.0XR0.3 Carbide Cutters

Product Code: S26212.0XR0.3

$293.45$266.77 Ex. GST

Product Code: S26212.0XR0.3 SKU S26212.0XR0.3 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

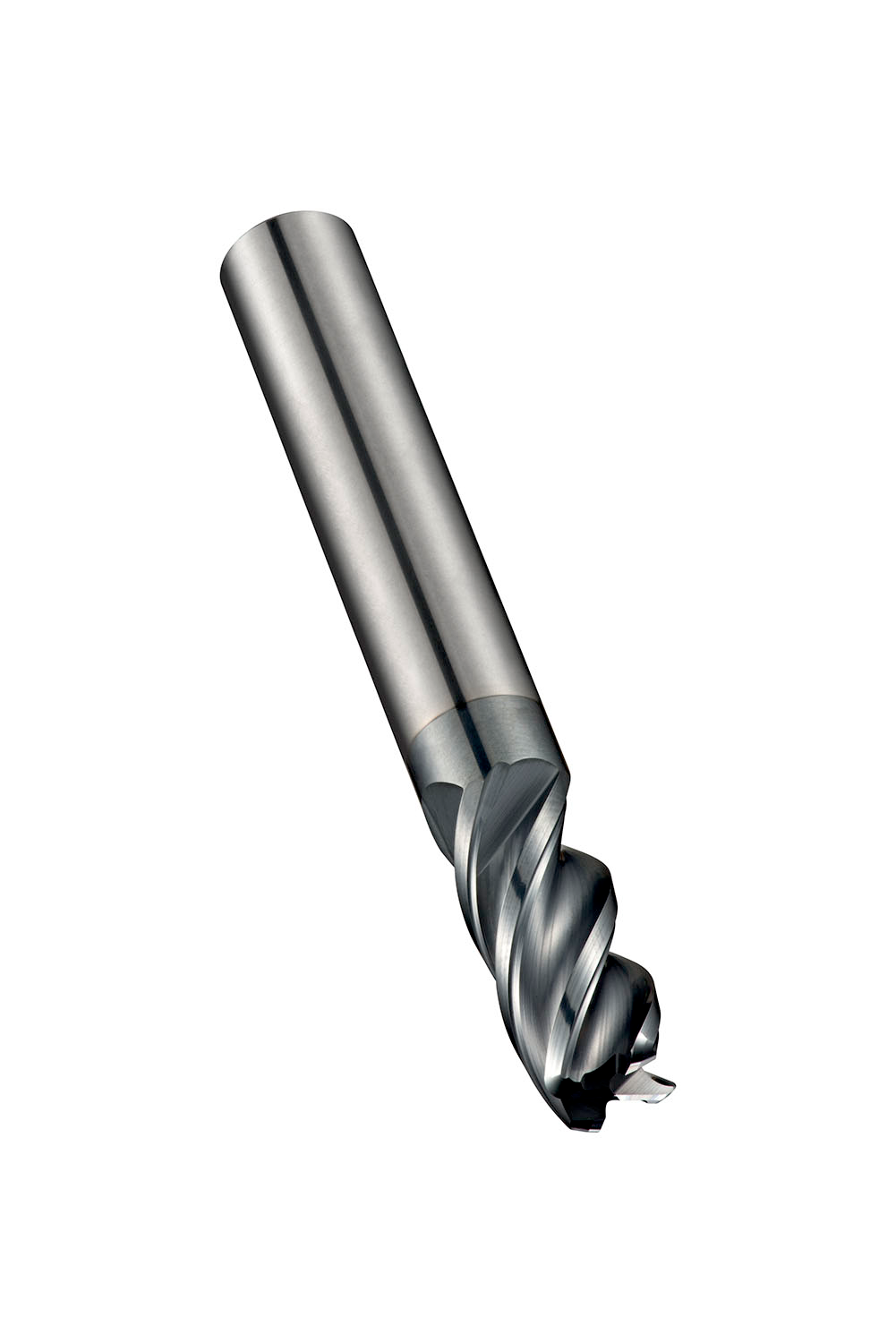

Short series corner radius end mill with 4 flutes, diameter 12mm with 26mm length of cut, 83mm overall length and 0.3mm corner radii, according to DORMER standard with a 12mm plain shank, solid carbide with AlCrN coating, 40° helix with differential pitch and 4° rake angle for shoulder milling, plunging, progressive plunge milling, ramping and helical milling in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel, high-temperature alloys, chilled, hardened cast-iron and hardened steel <55HRC

Additional information

Weight 0.2849 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760684931
Product number (SAP): 86022079
Ordering code ANSI: S26212.0XR0.3
Gross weight – grams: 121.9
Cutting diameter – millimeter (DC): 12 mm
Corner radius – millimeter (RE): 0.3 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 26 mm
Overall length – millimeter (OAL): 83 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 4
ISO: S26212.0XR0.3

Brand

DORMER
