DORMER S50110.0 Carbide Cutters

Product Code: S50110.0

$267.39$243.08 Ex. GST

Product Code: S50110.0 SKU S50110.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

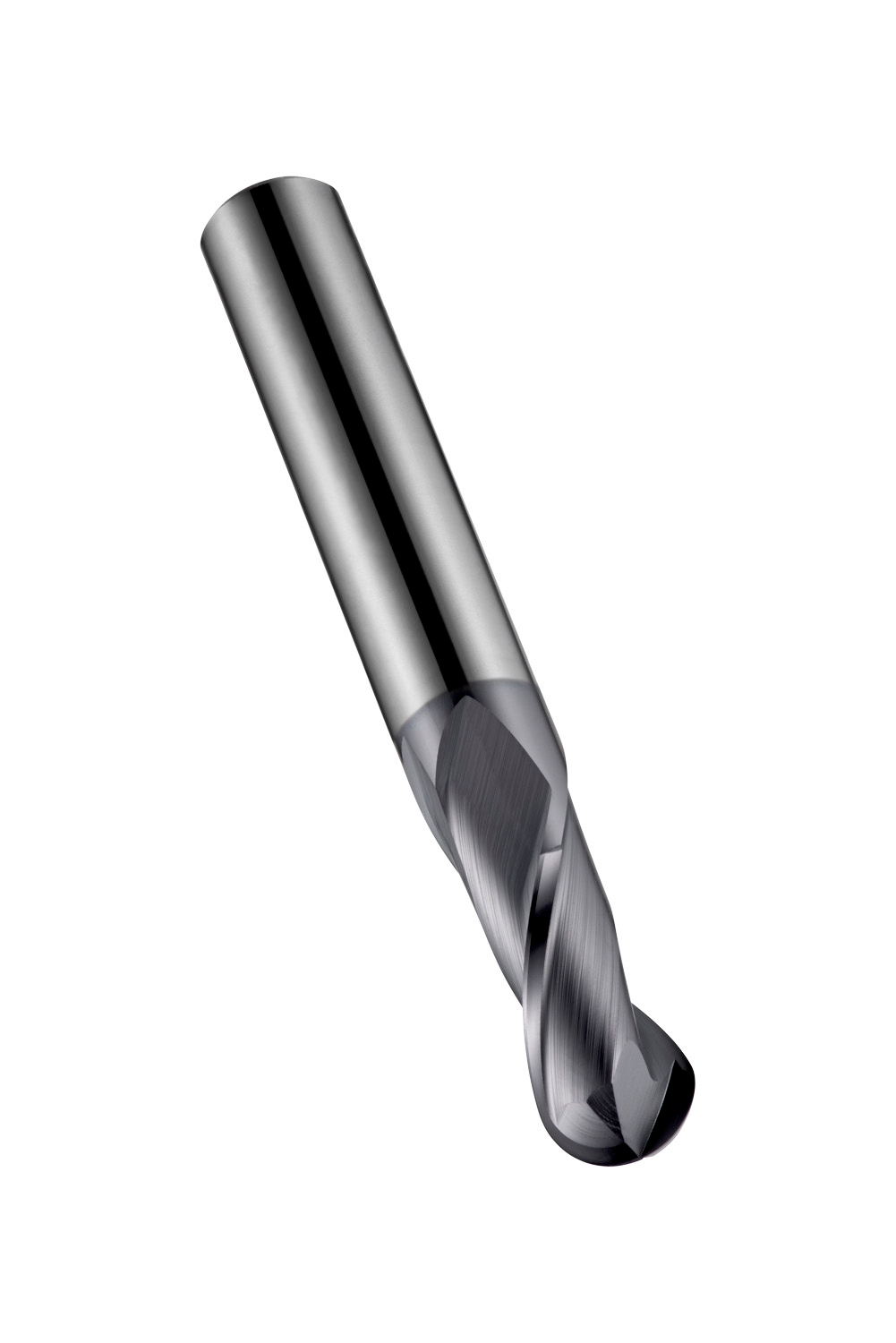

Short series ball-nose end mill with 2 flutes, diameter 10mm with 19mm length of cut, 72mm overall length and 5mm full profile radius, according to DORMER standard with a 10mm plain shank, solid carbide with X-CEED coating, 30° helix and 10° rake angle for copy milling in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and copper or copper alloys

Additional information

Weight 0.2596 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760342497
Product number (SAP): 86020014
Ordering code ANSI: S50110.0
Gross weight – grams: 75
Cutting diameter – millimeter (DC): 10 mm
Corner radius – millimeter (RE): 5 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 19 mm
Overall length – millimeter (OAL): 72 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 10
ISO: S50110.0

Brand

DORMER
