DORMER S50116.0 Carbide Cutters

Product Code: S50116.0

$607.29$552.08 Ex. GST

Product Code: S50116.0 SKU S50116.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

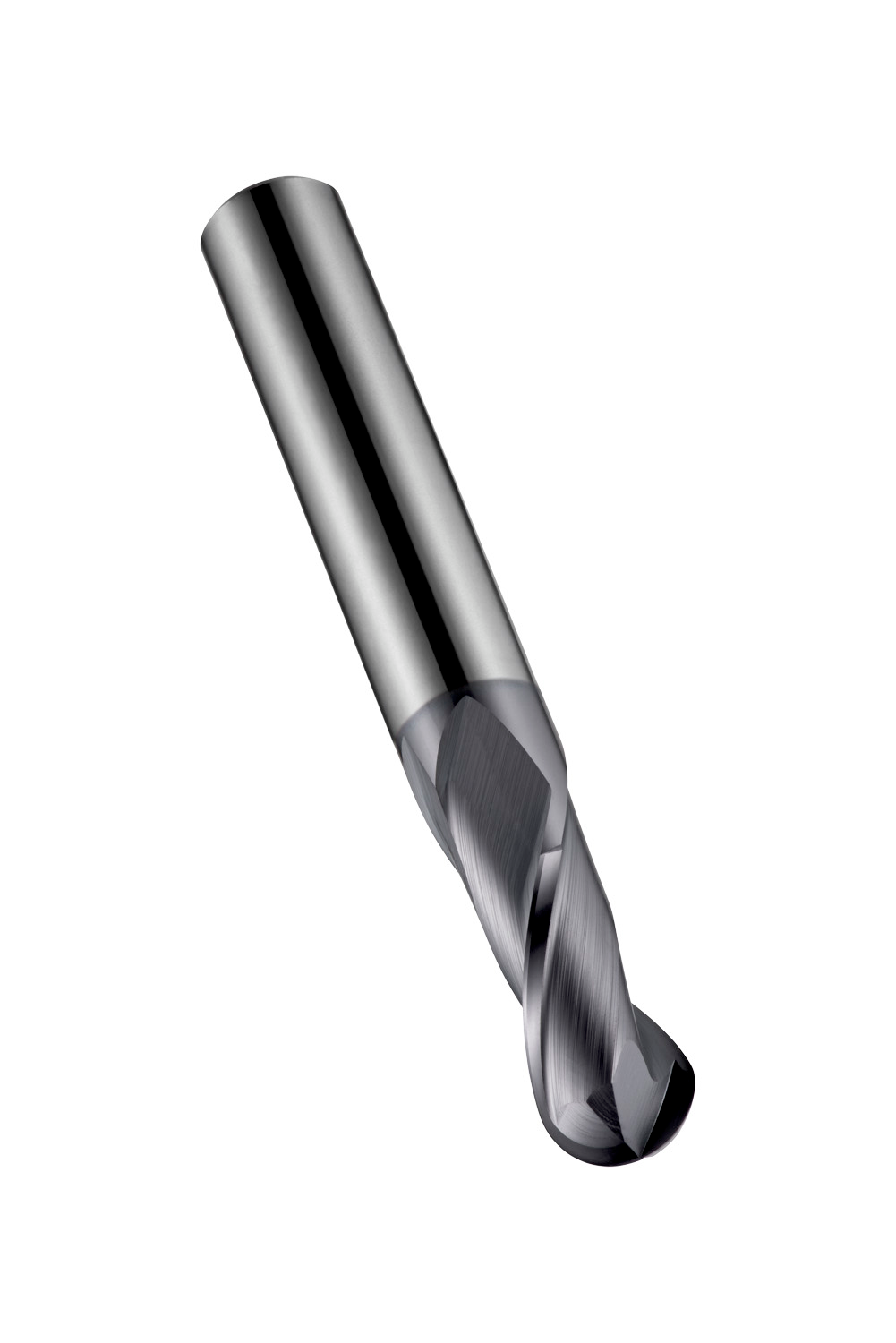

Short series ball-nose end mill with 2 flutes, diameter 16mm with 26mm length of cut, 92mm overall length and 8mm full profile radius, according to DORMER standard with a 16mm plain shank, solid carbide with X-CEED coating, 30° helix and 10° rake angle for copy milling in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and copper or copper alloys

Additional information

Weight 0.5896 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760342510
Product number (SAP): 86020016
Ordering code ANSI: S50116.0
Gross weight – grams: 231.8
Cutting diameter – millimeter (DC): 16 mm
Corner radius – millimeter (RE): 8 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 26 mm
Overall length – millimeter (OAL): 92 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 10
ISO: S50116.0

Brand

DORMER
