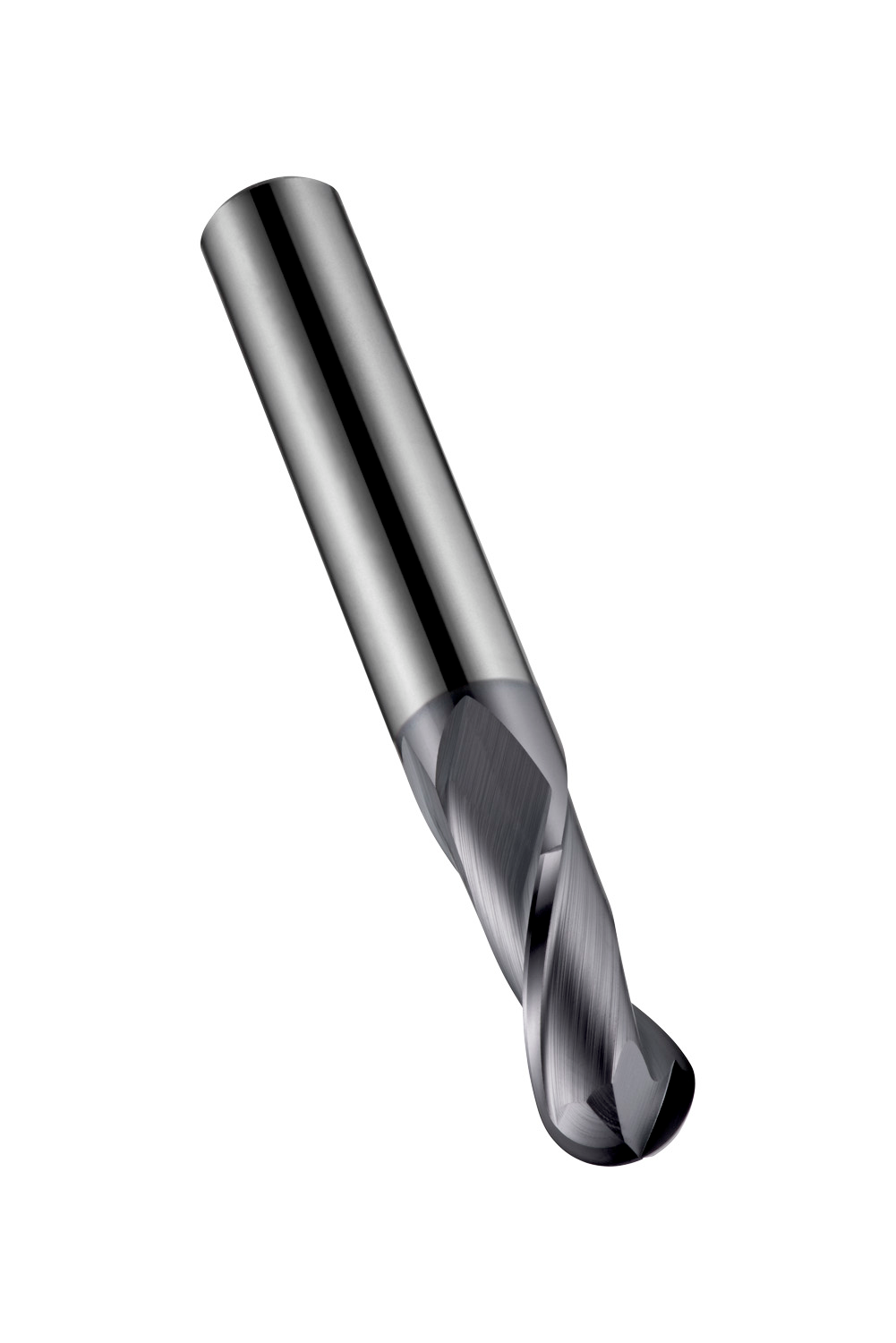

DORMER S5012.0 Carbide Cutters

Product Code: S5012.0

$130.30$118.45 Ex. GST

Product Code: S5012.0 SKU S5012.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series ball-nose end mill with 2 flutes, diameter 2mm with 6mm length of cut, 38mm overall length and 1mm full profile radius, according to DORMER standard with a 3mm plain shank, solid carbide with X-CEED coating, 30° helix and 10° rake angle for copy milling in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and copper or copper alloys

Additional information

Weight 0.1265 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760342411
Product number (SAP): 86020017
Ordering code ANSI: S5012.0
Gross weight – grams: 6
Cutting diameter – millimeter (DC): 2 mm
Corner radius – millimeter (RE): 1 mm
Connection diameter – millimeter (DCON MS): 3 mm
Depth of cut maximum – millimeter (APMX): 6 mm
Overall length – millimeter (OAL): 38 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 10
With Neck: Yes
ISO: S5012.0

Brand

DORMER
