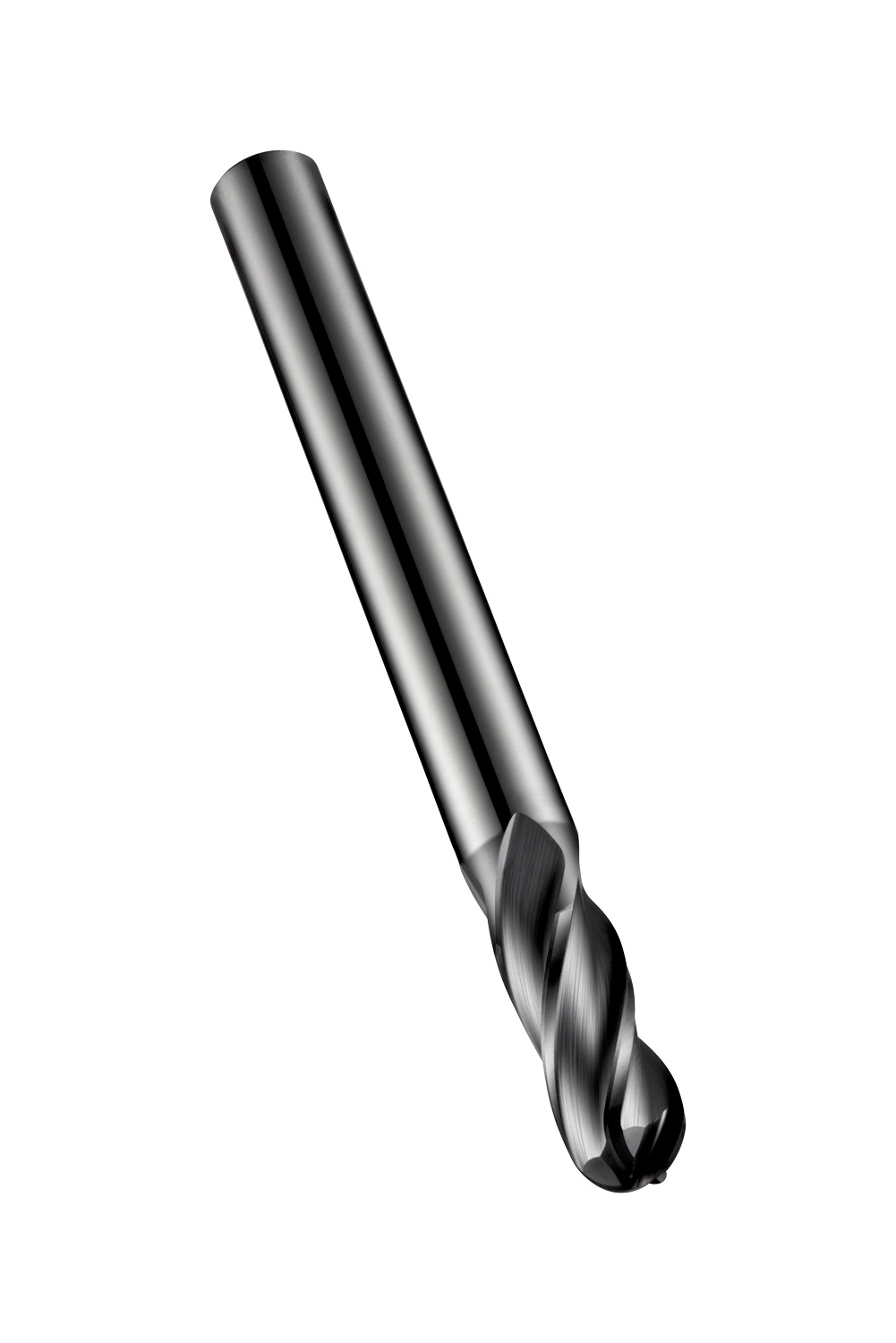

DORMER S5117.0 Carbide Cutters

Product Code: S5117.0

$236.80$215.27 Ex. GST

Product Code: S5117.0 SKU S5117.0 Categories , ,
DORMER S5117.0 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Short series ball-nose end mill with 4 flutes, diameter 7mm with 16mm length of cut, 100mm overall length and 3.5mm full profile radius, according to DORMER standard with a 8mm plain shank, solid carbide with X-CEED coating, 30° helix and 10° rake angle for copy milling in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and copper or copper alloys

Additional information

Weight 0.2299 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760121047
Product number (SAP): 86020033
Ordering code ANSI: S5117.0
Gross weight – grams: 71.3
Cutting diameter – millimeter (DC): 7 mm
Corner radius – millimeter (RE): 3.5 mm
Connection diameter – millimeter (DCON MS): 8 mm
Depth of cut maximum – millimeter (APMX): 16 mm
Overall length – millimeter (OAL): 100 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 10
With Neck: Yes
ISO: S5117.0

Brand

DORMER
