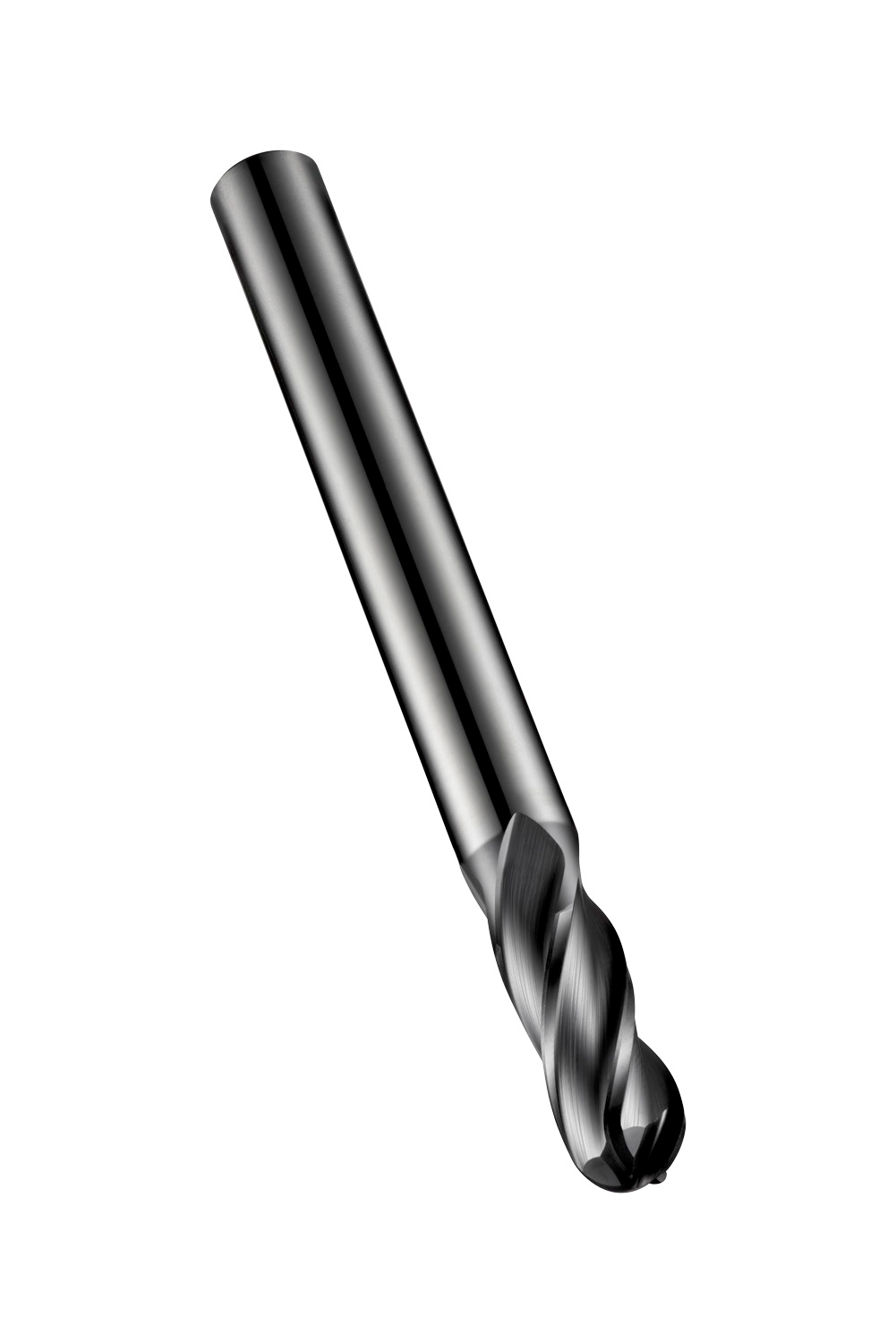

DORMER S5119.0 Carbide Cutters

Description

Short series ball-nose end mill with 4 flutes, diameter 9mm with 19mm length of cut, 100mm overall length and 4.5mm full profile radius, according to DORMER standard with a 10mm plain shank, solid carbide with X-CEED coating, 30° helix and 10° rake angle for copy milling in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and copper or copper alloys

Additional information

Weight	0.3058 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760121061 Product number (SAP): 86020035 Ordering code ANSI: S5119.0 Gross weight – grams: 104.7 Cutting diameter – millimeter (DC): 9 mm Corner radius – millimeter (RE): 4.5 mm Connection diameter – millimeter (DCON MS): 10 mm Depth of cut maximum – millimeter (APMX): 19 mm Overall length – millimeter (OAL): 100 mm Flute count (NOF): 4 Radial rake angle (GAMF): 10 With Neck: Yes ISO: S5119.0

Need Technical Advice?

Description

Additional information

Brand

DORMER
