DORMER S52112.0XR1.0 Carbide Cutters

Product Code: S52112.0XR1.0

$371.62$337.84 Ex. GST

Product Code: S52112.0XR1.0 SKU S52112.0XR1.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

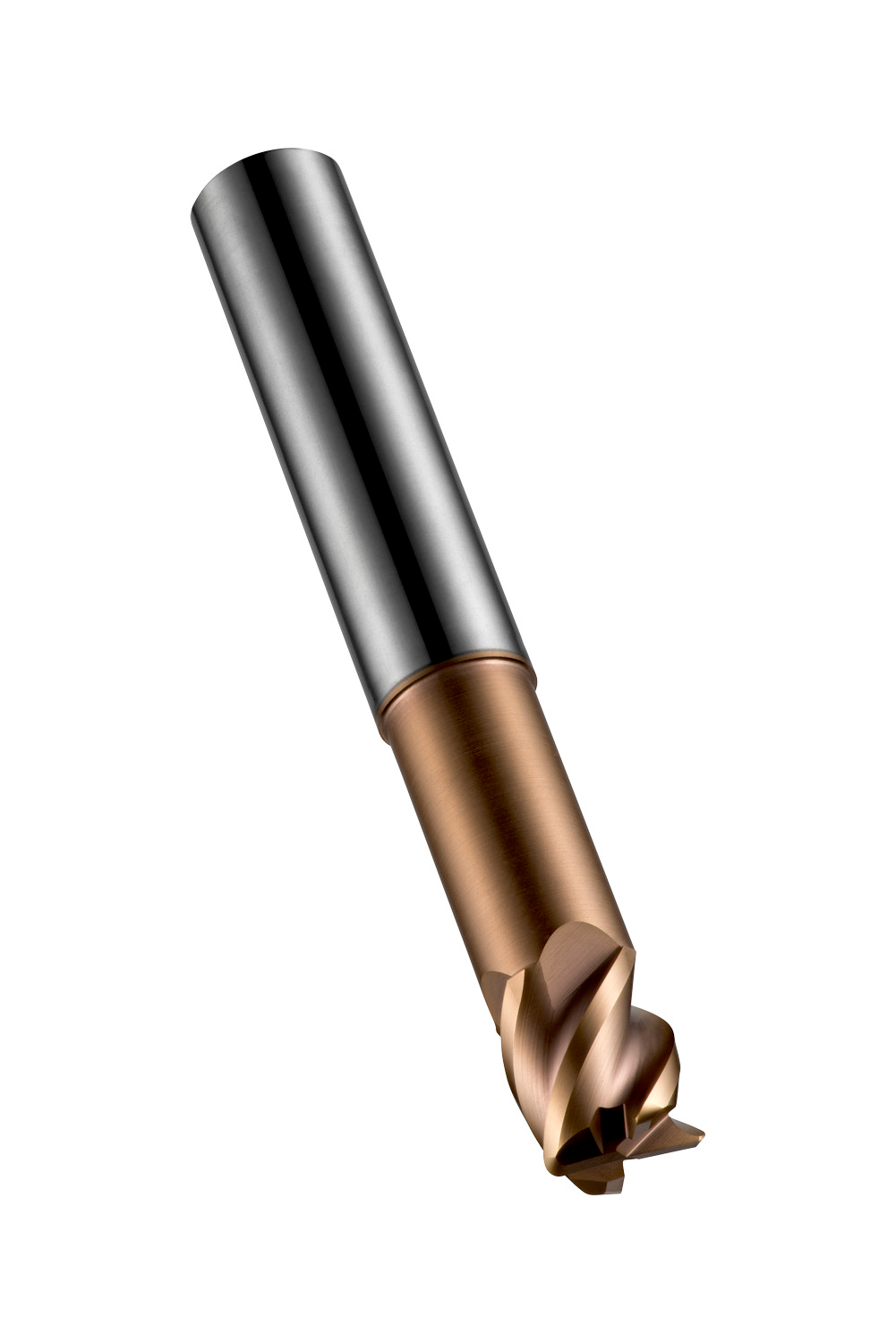

Extra short series corner radius end mill with 4 flutes, diameter 12mm with 13mm length of cut, 75mm overall length, 37mm reach with neck relief and 1mm corner radii, according to DORMER standard with a 12mm plain shank, solid carbide with TiSiN coating, 45° helix and -10° rake angle for shoulder milling, plunging, progressive plunge milling, ramping and helical milling in hardened materials

Additional information

Weight 0.3608 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760682319
Product number (SAP): 86021819
Ordering code ANSI: S52112.0XR1.0
Gross weight – grams: 114
Cutting diameter – millimeter (DC): 12 mm
Corner radius – millimeter (RE): 1 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 13 mm
Overall length – millimeter (OAL): 75 mm
Flute count (NOF): 4
Usable Length – millimeter (LU): 37 mm
Neck diameter – millimeter (DN): 11 mm
Radial rake angle (GAMF): -10
With Neck: Yes
ISO: S52112.0XR1.0

Brand

DORMER
