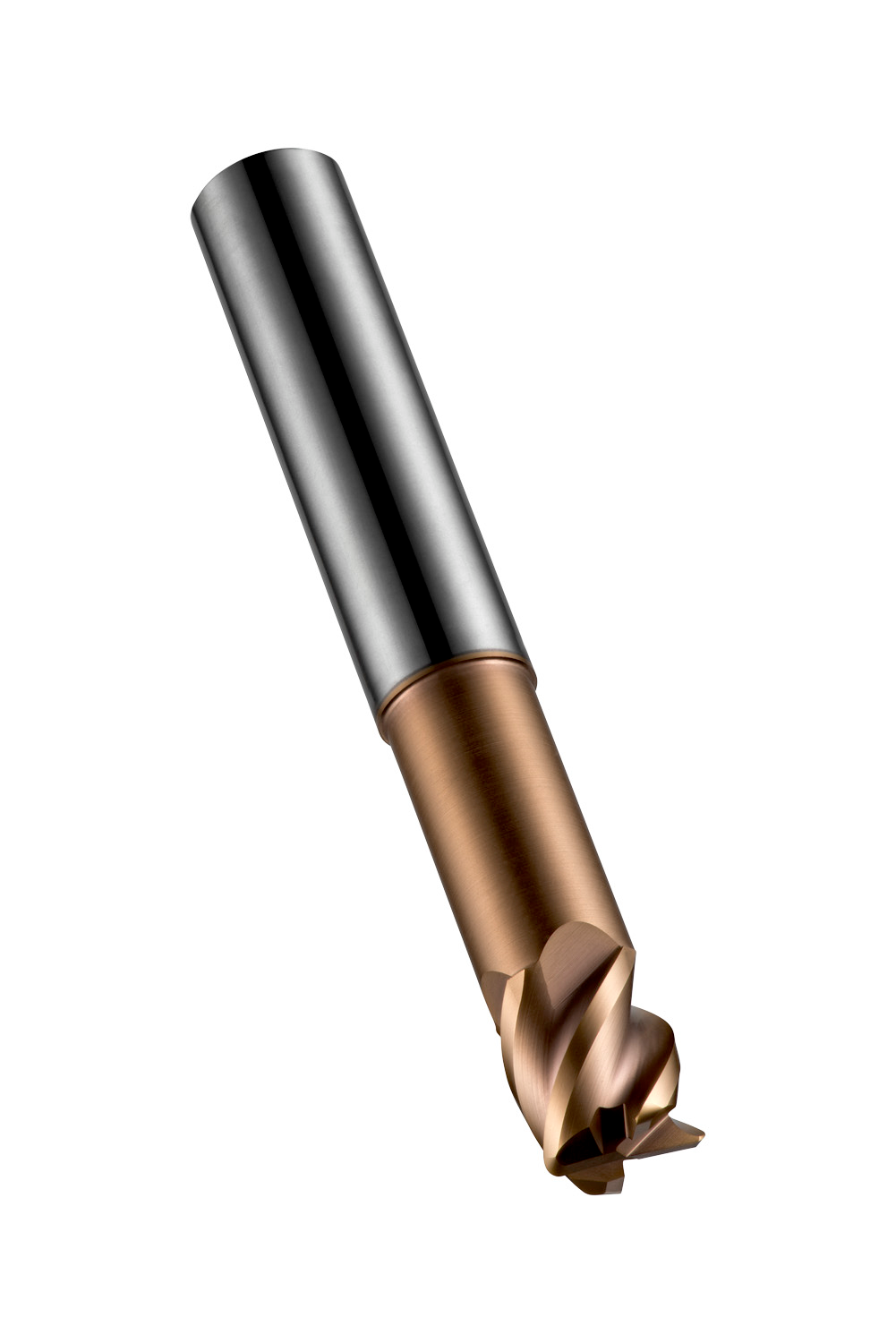

DORMER S5213.0XR0.3 Carbide Cutters

Product Code: S5213.0XR0.3

$131.43$119.48 Ex. GST

Product Code: S5213.0XR0.3 SKU S5213.0XR0.3 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Extra short series corner radius end mill with 4 flutes, diameter 3mm with 4mm length of cut, 60mm overall length, 14mm reach with neck relief and 0.3mm corner radii, according to DORMER standard with a 6mm plain shank, solid carbide with TiSiN coating, 45° helix and -10° rake angle for shoulder milling, plunging, progressive plunge milling, ramping and helical milling in hardened materials

Additional information

Weight 0.1276 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760682197
Product number (SAP): 86021807
Ordering code ANSI: S5213.0XR0.3
Gross weight – grams: 24.7
Cutting diameter – millimeter (DC): 3 mm
Corner radius – millimeter (RE): 0.3 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 4 mm
Overall length – millimeter (OAL): 60 mm
Flute count (NOF): 4
Usable Length – millimeter (LU): 14 mm
Neck diameter – millimeter (DN): 2.8 mm
Radial rake angle (GAMF): -10
With Neck: Yes
ISO: S5213.0XR0.3

Brand

DORMER
