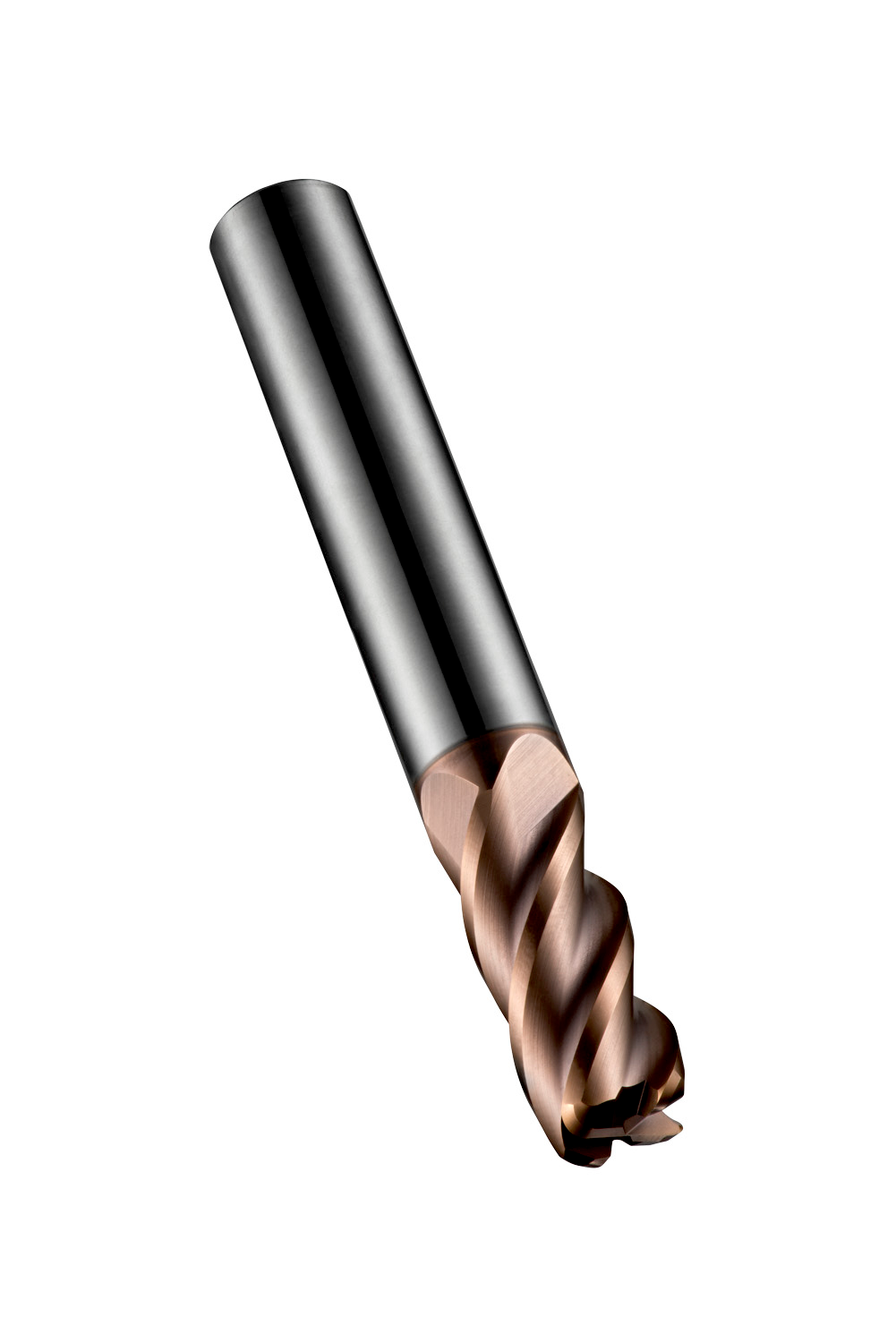

DORMER S5231.5XR0.2 Carbide Cutters

Product Code: S5231.5XR0.2

$117.83$107.12 Ex. GST

Product Code: S5231.5XR0.2 SKU S5231.5XR0.2 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series corner radius end mill with 4 flutes, diameter 1.5mm with 4.5mm length of cut, 50mm overall length and 0.2mm corner radii, according to DORMER standard with a 6mm plain shank, solid carbide with TiSiN coating, 40° helix and -6° rake angle for shoulder milling, plunging, progressive plunge milling, ramping and helical milling in hardened materials

Additional information

Weight 0.1144 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760682739
Product number (SAP): 86021861
Ordering code ANSI: S5231.5XR0.2
Gross weight – grams: 22.6
Cutting diameter – millimeter (DC): 1.5 mm
Corner radius – millimeter (RE): 0.2 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 4.5 mm
Overall length – millimeter (OAL): 50 mm
Flute count (NOF): 4
Radial rake angle (GAMF): -6
With Neck: Yes
ISO: S5231.5XR0.2

Brand

DORMER
