DORMER S52312.0XR0.5 Carbide Cutters

Product Code: S52312.0XR0.5

$321.77$292.52 Ex. GST

Product Code: S52312.0XR0.5 SKU S52312.0XR0.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

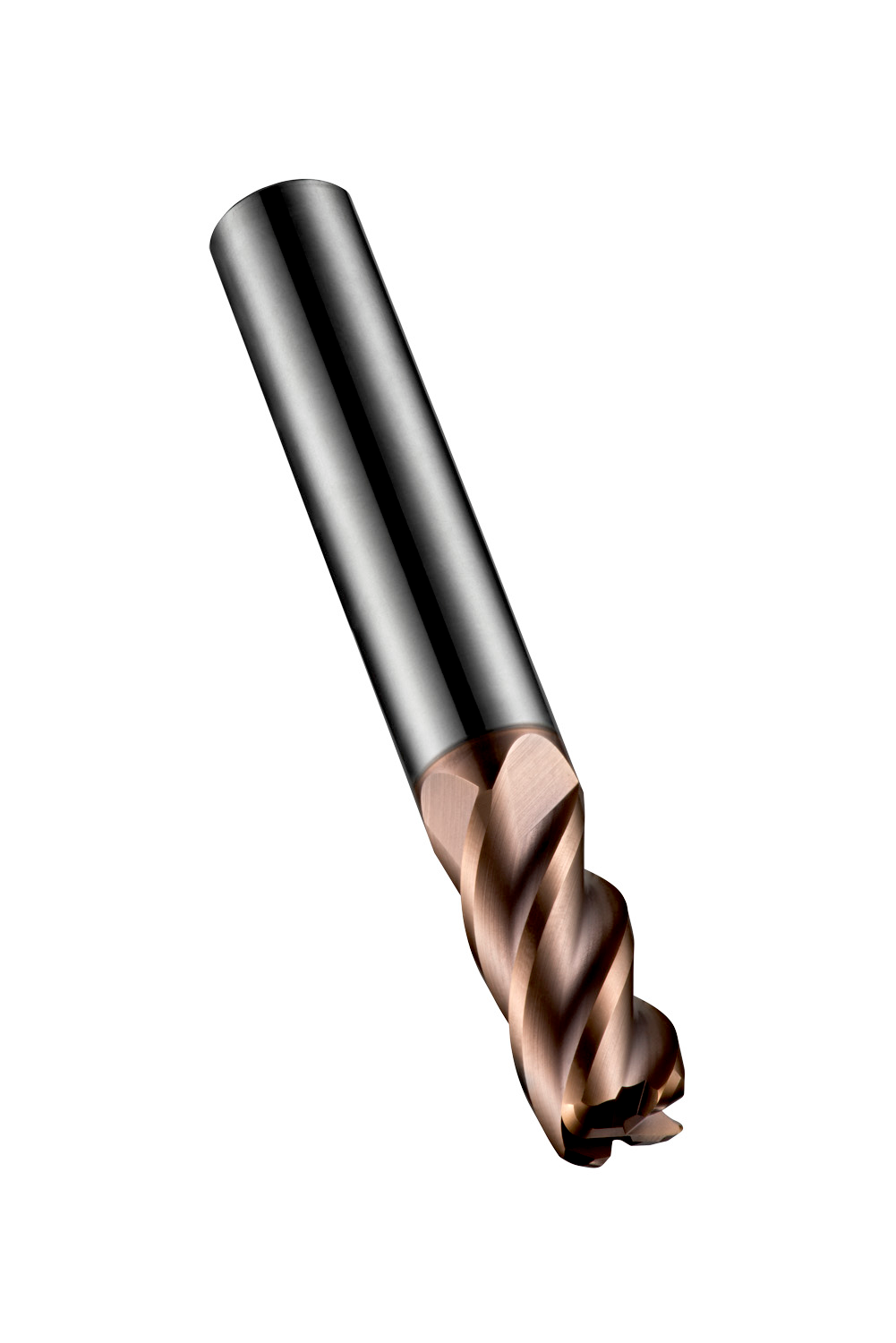

Short series corner radius end mill with 4 flutes, diameter 12mm with 25mm length of cut, 75mm overall length and 0.5mm corner radii, according to DORMER standard with a 12mm plain shank, solid carbide with TiSiN coating, 40° helix and -6° rake angle for shoulder milling, plunging, progressive plunge milling, ramping and helical milling in hardened materials

Additional information

Weight 0.3124 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760683002
Product number (SAP): 86021888
Ordering code ANSI: S52312.0XR0.5
Gross weight – grams: 112
Cutting diameter – millimeter (DC): 12 mm
Corner radius – millimeter (RE): 0.5 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 25 mm
Overall length – millimeter (OAL): 75 mm
Flute count (NOF): 4
Radial rake angle (GAMF): -6
ISO: S52312.0XR0.5

Brand

DORMER
