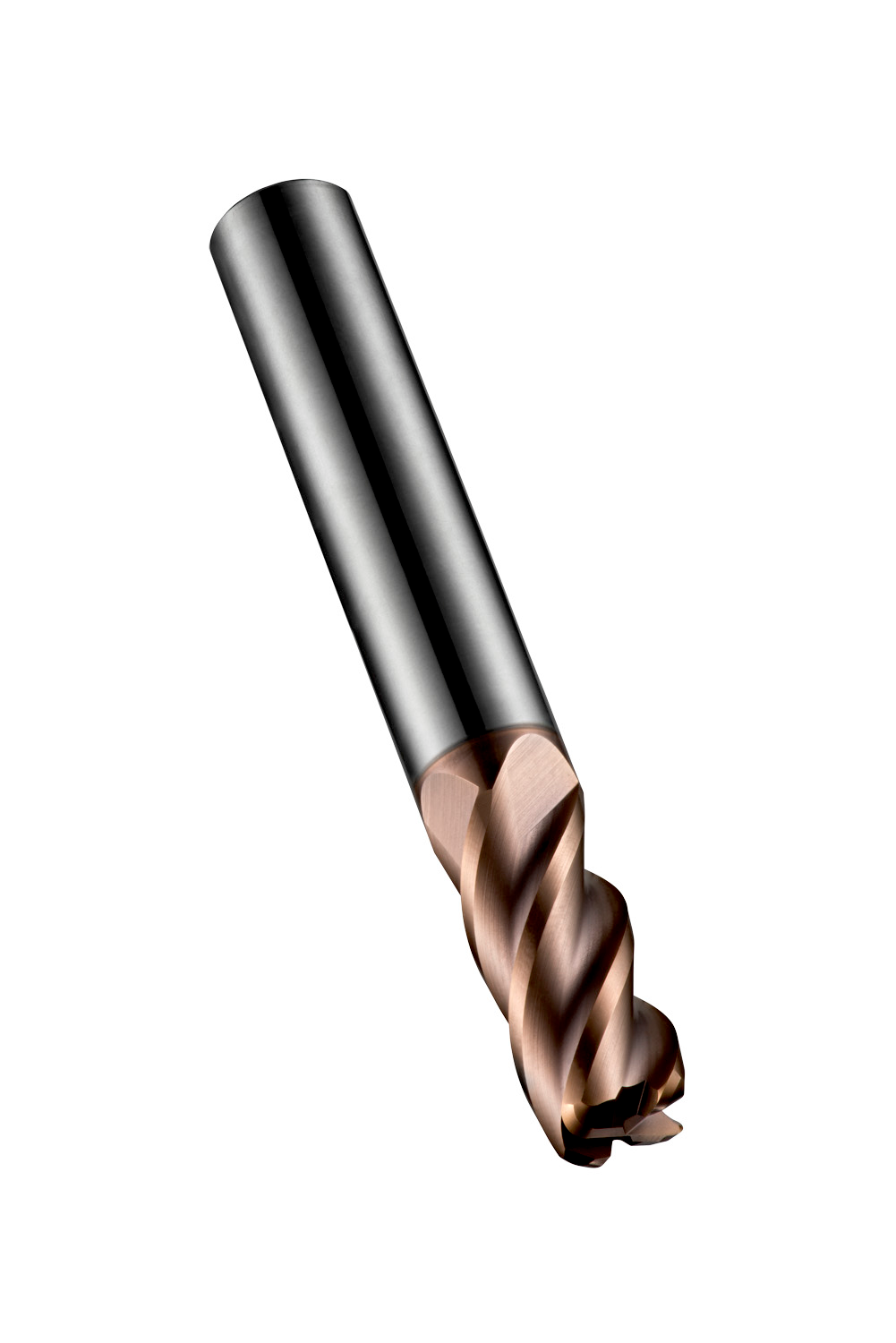

DORMER S5235.0XR0.3XD6 Carbide Cutters

Product Code: S5235.0XR0.3XD6

$125.76$114.33 Ex. GST

Product Code: S5235.0XR0.3XD6 SKU S5235.0XR0.3XD6 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series corner radius end mill with 4 flutes, diameter 5mm with 15mm length of cut, 50mm overall length and 0.3mm corner radii, according to DORMER standard with a 6mm plain shank, solid carbide with TiSiN coating, 40° helix and -6° rake angle for shoulder milling, plunging, progressive plunge milling, ramping and helical milling in hardened materials

Additional information

Weight 0.1221 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760682869
Product number (SAP): 86021874
Ordering code ANSI: S5235.0XR0.3XD6
Gross weight – grams: 22.8
Cutting diameter – millimeter (DC): 5 mm
Corner radius – millimeter (RE): 0.3 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 15 mm
Overall length – millimeter (OAL): 50 mm
Flute count (NOF): 4
Radial rake angle (GAMF): -6
With Neck: Yes
ISO: S5235.0XR0.3XD6

Brand

DORMER
