DORMER S52416.0XR1.0 Carbide Cutters

Product Code: S52416.0XR1.0

$641.28$582.98 Ex. GST

Product Code: S52416.0XR1.0 SKU S52416.0XR1.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

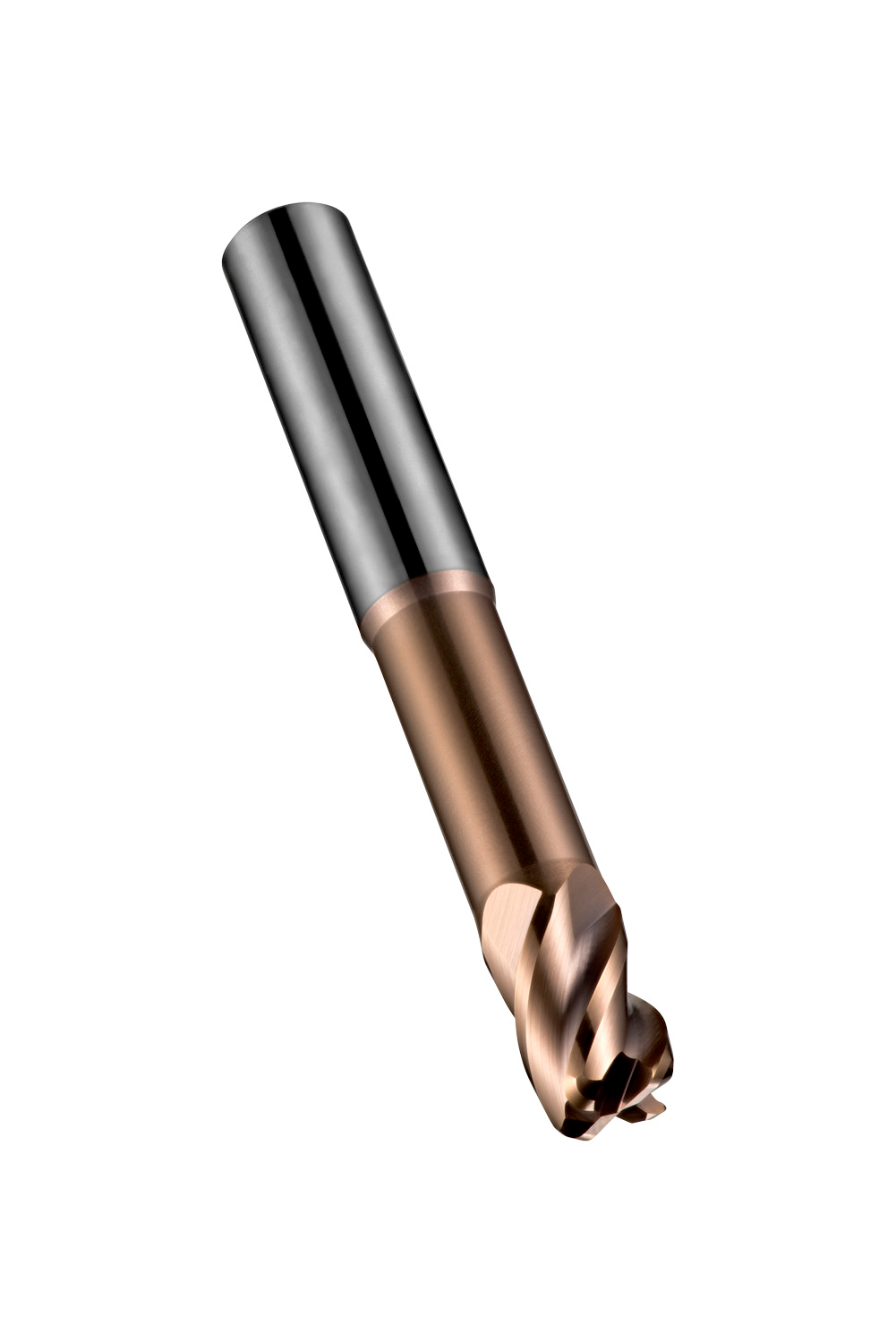

Extra short series corner radius end mill with 4 flutes, diameter 16mm with 22mm length of cut, 125mm overall length, 85mm reach with neck relief and 1mm corner radii, according to DORMER standard with a 16mm plain shank, solid carbide with TiSiN coating, 40° helix and -6° rake angle for shoulder milling, plunging, progressive plunge milling, ramping and helical milling in hardened materials

Additional information

Weight 0.6226 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760682159
Product number (SAP): 86021803
Ordering code ANSI: S52416.0XR1.0
Gross weight – grams: 321.4
Cutting diameter – millimeter (DC): 16 mm
Corner radius – millimeter (RE): 1 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 125 mm
Flute count (NOF): 4
Usable Length – millimeter (LU): 85 mm
Neck diameter – millimeter (DN): 15 mm
Radial rake angle (GAMF): -6
With Neck: Yes
ISO: S52416.0XR1.0

Brand

DORMER
