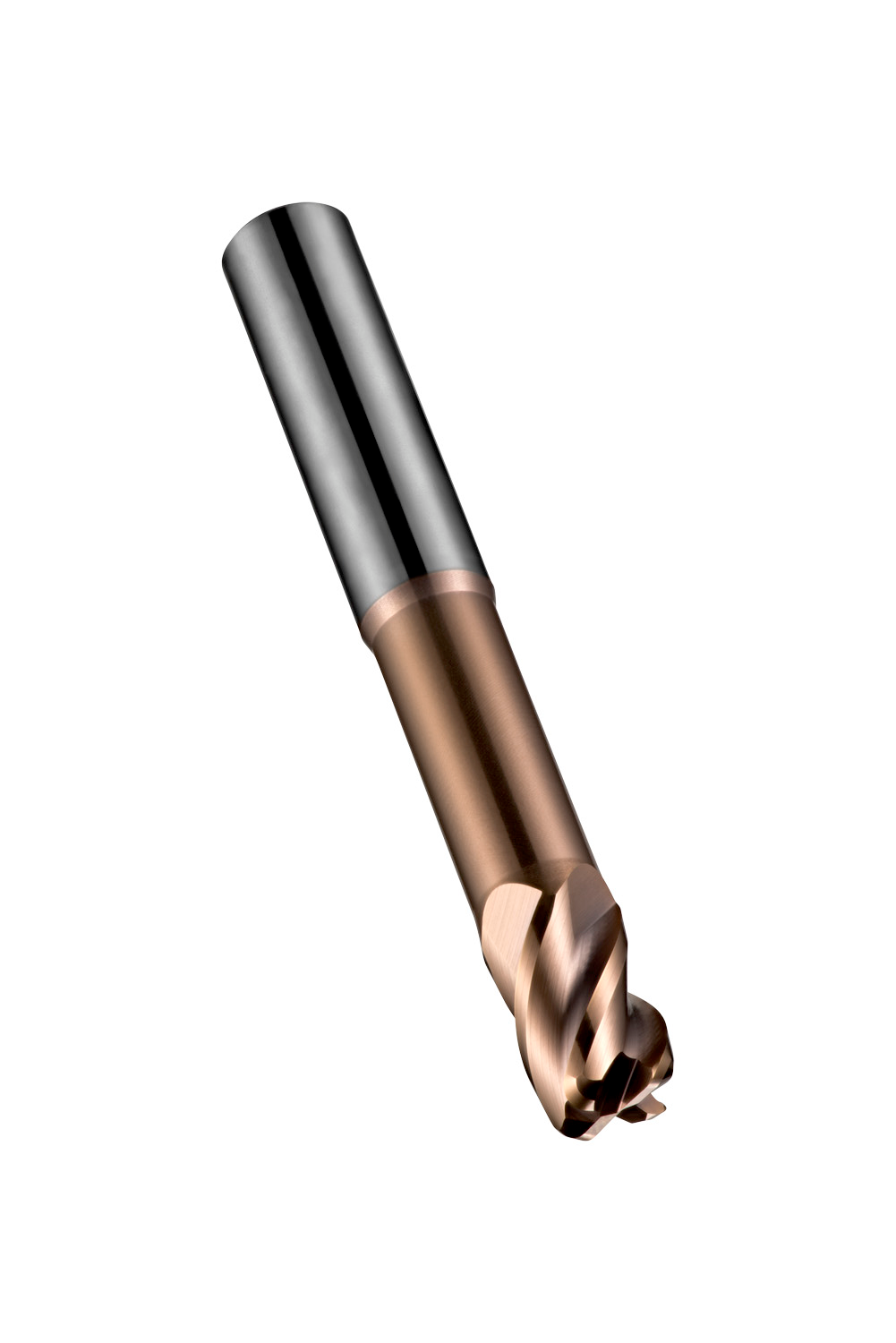

DORMER S5244.0XR0.5 Carbide Cutters

Product Code: S5244.0XR0.5

$149.56$135.96 Ex. GST

Product Code: S5244.0XR0.5 SKU S5244.0XR0.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Extra short series corner radius end mill with 4 flutes, diameter 4mm with 8mm length of cut, 75mm overall length, 32mm reach with neck relief and 0.5mm corner radii, according to DORMER standard with a 6mm plain shank, solid carbide with TiSiN coating, 40° helix and -6° rake angle for shoulder milling, plunging, progressive plunge milling, ramping and helical milling in hardened materials

Additional information

Weight 0.1452 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760682005
Product number (SAP): 86021788
Ordering code ANSI: S5244.0XR0.5
Gross weight – grams: 27.3
Cutting diameter – millimeter (DC): 4 mm
Corner radius – millimeter (RE): 0.5 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 8 mm
Overall length – millimeter (OAL): 75 mm
Flute count (NOF): 4
Usable Length – millimeter (LU): 32 mm
Neck diameter – millimeter (DN): 3.7 mm
Radial rake angle (GAMF): -6
With Neck: Yes
ISO: S5244.0XR0.5

Brand

DORMER
