DORMER S5273.0 Carbide Cutters

Product Code: S5273.0

$172.22$156.56 Ex. GST

Product Code: S5273.0 SKU S5273.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

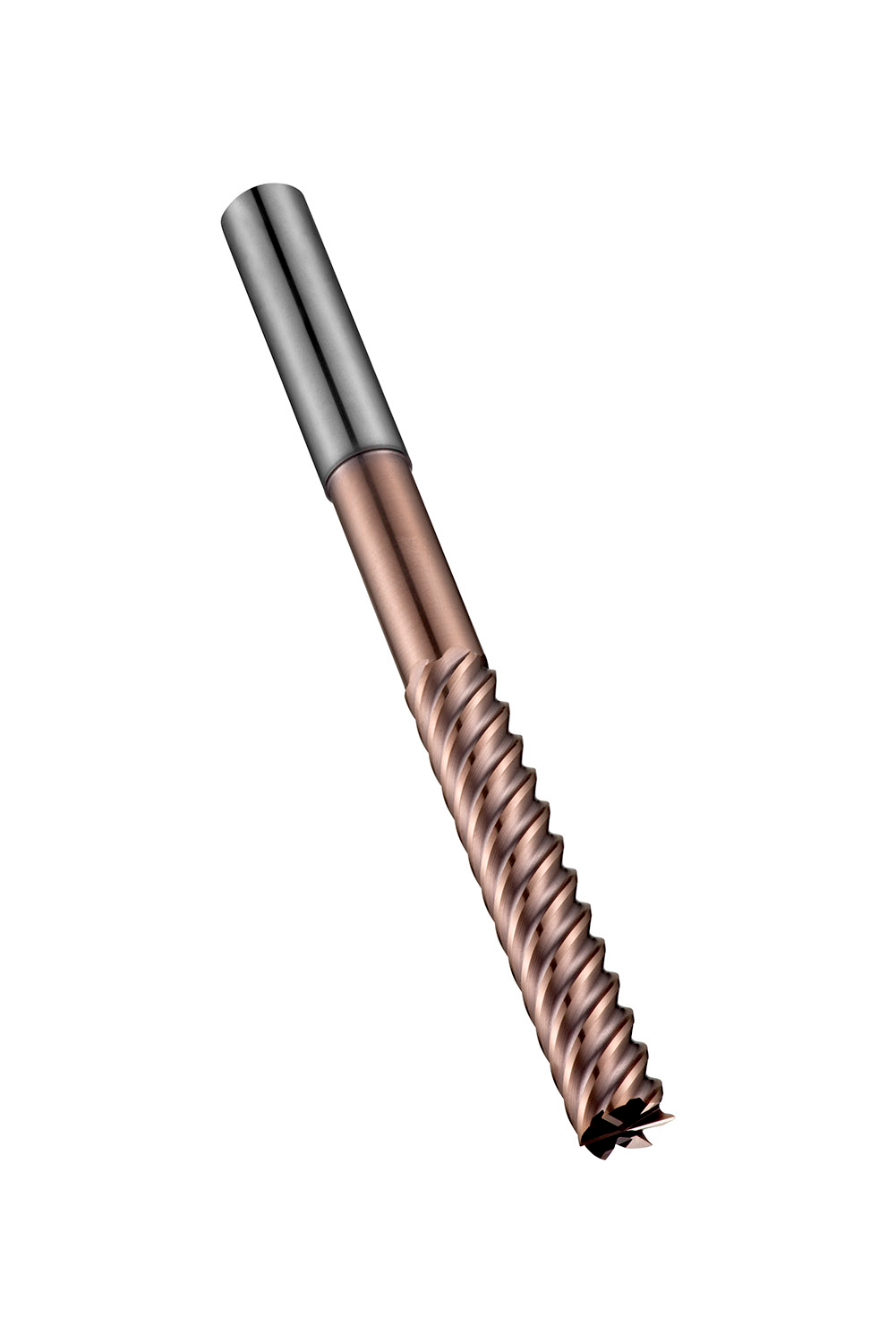

Extra long series finishing end mill with 6 flutes, diameter 3mm with 25mm length of cut, 100mm overall length and 60mm reach with neck relief, according to DORMER standard with a 6mm plain shank, solid carbide with TiSiN coating, 50° helix and -26° rake angle for shoulder milling in hardened materials

Additional information

Weight 0.1672 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760683774
Product number (SAP): 86021965
Ordering code ANSI: S5273.0
Gross weight – grams: 26
Cutting diameter – millimeter (DC): 3 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 25 mm
Overall length – millimeter (OAL): 100 mm
Flute count (NOF): 6
Usable Length – millimeter (LU): 60 mm
Neck diameter – millimeter (DN): 2.8 mm
Radial rake angle (GAMF): -26
With Neck: Yes
ISO: S5273.0

Brand

DORMER
