DORMER S5278.0 Carbide Cutters

Product Code: S5278.0

$268.52$244.11 Ex. GST

Product Code: S5278.0 SKU S5278.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

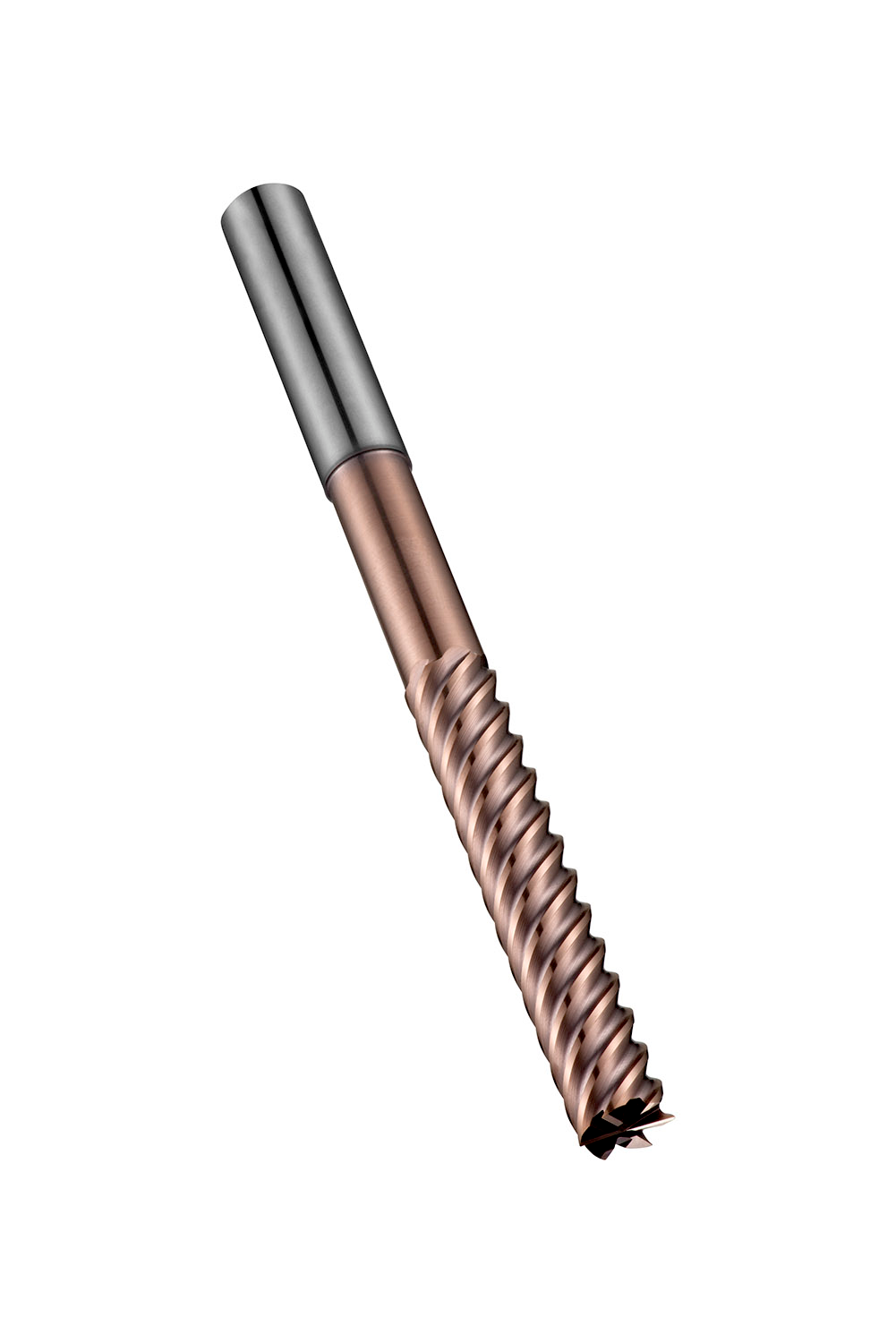

Extra long series finishing end mill with 6 flutes, diameter 8mm with 41mm length of cut, 100mm overall length and 60mm reach with neck relief, according to DORMER standard with a 8mm plain shank, solid carbide with TiSiN coating, 50° helix and -26° rake angle for shoulder milling in hardened materials

Additional information

Weight 0.2607 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760683804
Product number (SAP): 86021968
Ordering code ANSI: S5278.0
Gross weight – grams: 69
Cutting diameter – millimeter (DC): 8 mm
Connection diameter – millimeter (DCON MS): 8 mm
Depth of cut maximum – millimeter (APMX): 41 mm
Overall length – millimeter (OAL): 100 mm
Flute count (NOF): 6
Usable Length – millimeter (LU): 60 mm
Neck diameter – millimeter (DN): 7.4 mm
Radial rake angle (GAMF): -26
With Neck: Yes
ISO: S5278.0

Brand

DORMER
