DORMER S52916.0 Carbide Cutters

Product Code: S52916.0

$498.52$453.20 Ex. GST

Product Code: S52916.0 SKU S52916.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

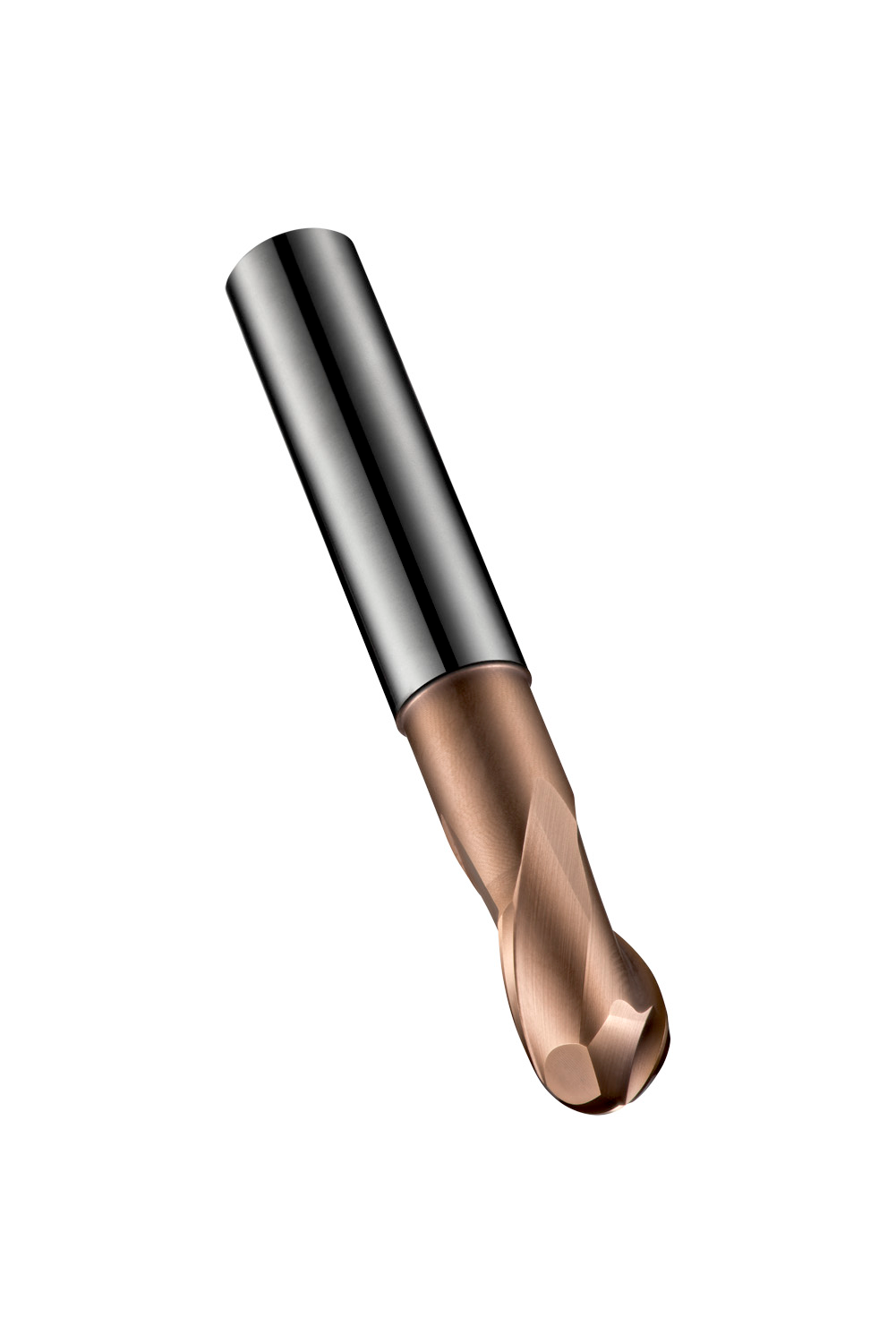

Extra short series ball-nose end mill with 2 flutes, diameter 16mm with 32mm length of cut, 90mm overall length, 46mm reach with neck relief and 8mm full profile radius, according to DORMER standard with a 16mm plain shank, solid carbide with TiSiN coating, 30° helix and -10° rake angle for copy milling in hardened materials

Additional information

Weight 0.4840 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760680629
Product number (SAP): 86021653
Ordering code ANSI: S52916.0
Gross weight – grams: 217.3
Cutting diameter – millimeter (DC): 16 mm
Corner radius – millimeter (RE): 8 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 90 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 46 mm
Neck diameter – millimeter (DN): 15 mm
Radial rake angle (GAMF): -10
With Neck: Yes
ISO: S52916.0

Brand

DORMER
