DORMER S5311.5 Carbide Cutters

Product Code: S5311.5

$121.23$110.21 Ex. GST

Product Code: S5311.5 SKU S5311.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

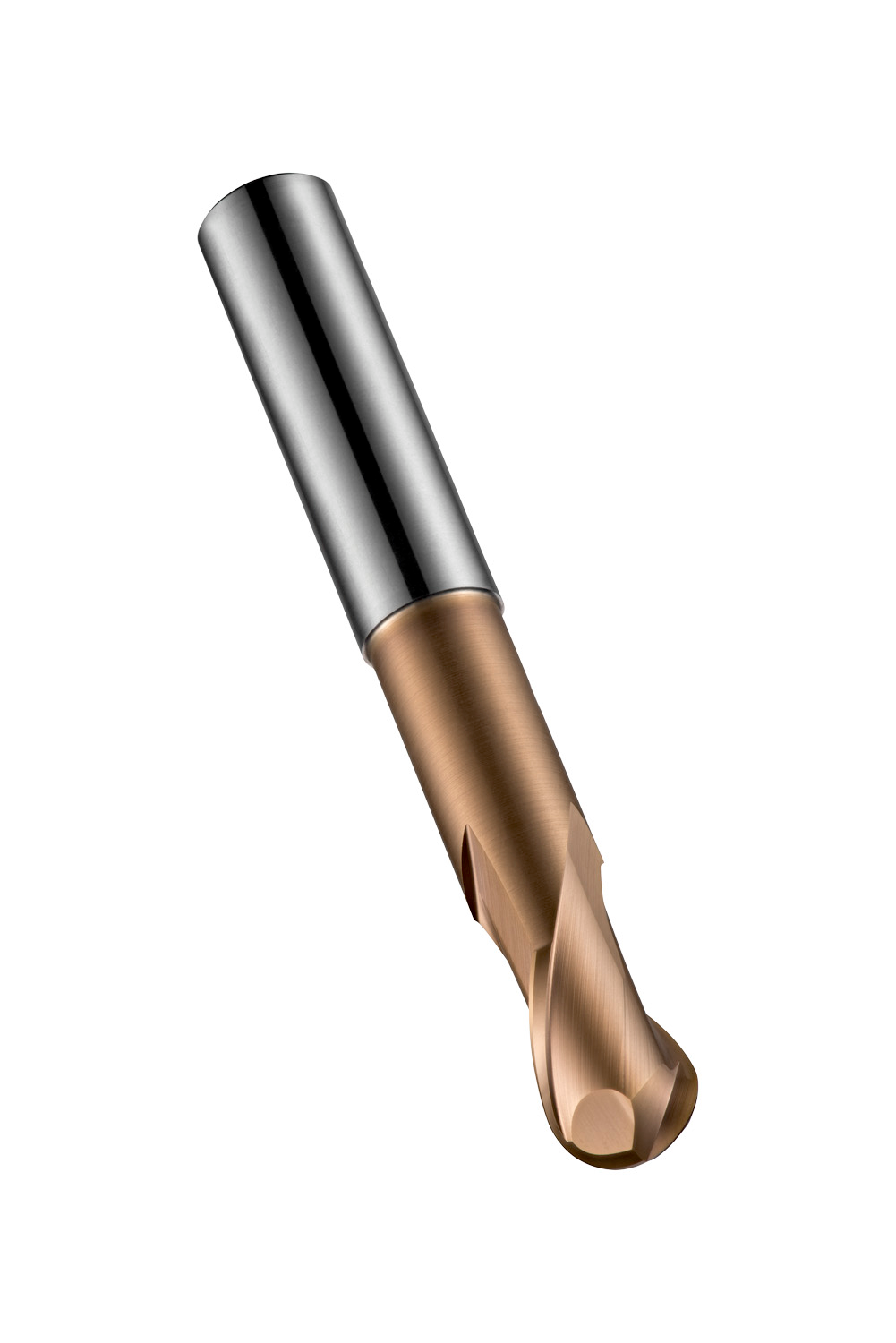

Extra short series ball-nose end mill with 2 flutes, diameter 1.5mm with 3mm length of cut, 75mm overall length, 10mm reach with neck relief and 0.75mm full profile radius, according to DORMER standard with a 6mm plain shank, solid carbide with TiSiN coating, 30° helix and -10° rake angle for copy milling in hardened materials

Additional information

Weight 0.1177 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760680209
Product number (SAP): 86021611
Ordering code ANSI: S5311.5
Gross weight – grams: 31.4
Cutting diameter – millimeter (DC): 1.5 mm
Corner radius – millimeter (RE): 0.75 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 3 mm
Overall length – millimeter (OAL): 75 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 10 mm
Neck diameter – millimeter (DN): 1.4 mm
Radial rake angle (GAMF): -10
With Neck: Yes
ISO: S5311.5

Brand

DORMER
