DORMER S5314.0XD4 Carbide Cutters

Product Code: S5314.0XD4

$128.03$116.39 Ex. GST

Product Code: S5314.0XD4 SKU S5314.0XD4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

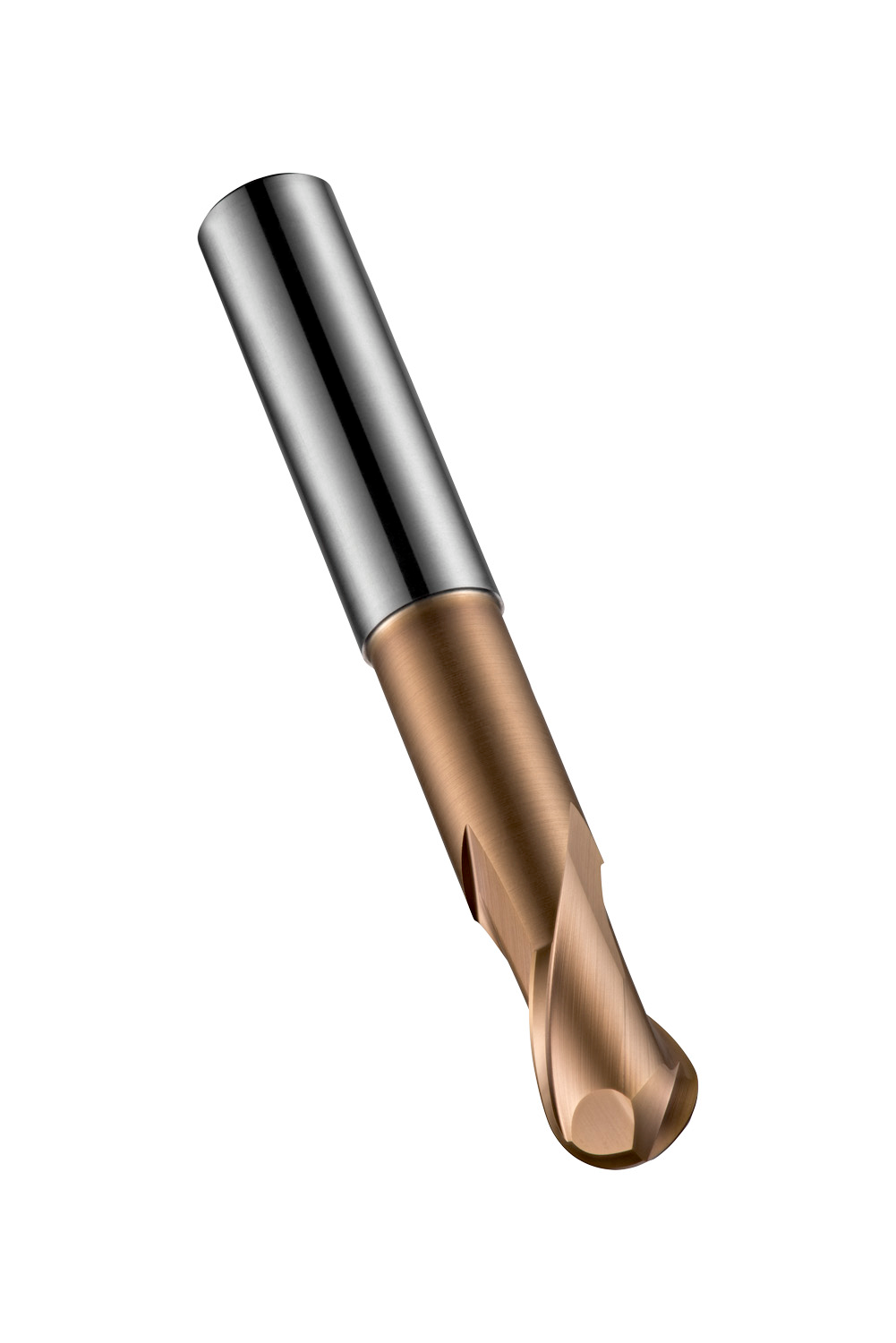

Extra short series ball-nose end mill with 2 flutes, diameter 4mm with 8mm length of cut, 60mm overall length, 28mm reach with neck relief and 2mm full profile radius, according to DORMER standard with a 4mm plain shank, solid carbide with TiSiN coating, 30° helix and -10° rake angle for copy milling in hardened materials

Additional information

Weight 0.1243 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760680254
Product number (SAP): 86021616
Ordering code ANSI: S5314.0XD4
Gross weight – grams: 12.7
Cutting diameter – millimeter (DC): 4 mm
Corner radius – millimeter (RE): 2 mm
Connection diameter – millimeter (DCON MS): 4 mm
Depth of cut maximum – millimeter (APMX): 8 mm
Overall length – millimeter (OAL): 60 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 28 mm
Neck diameter – millimeter (DN): 3.7 mm
Radial rake angle (GAMF): -10
With Neck: Yes
ISO: S5314.0XD4

Brand

DORMER
