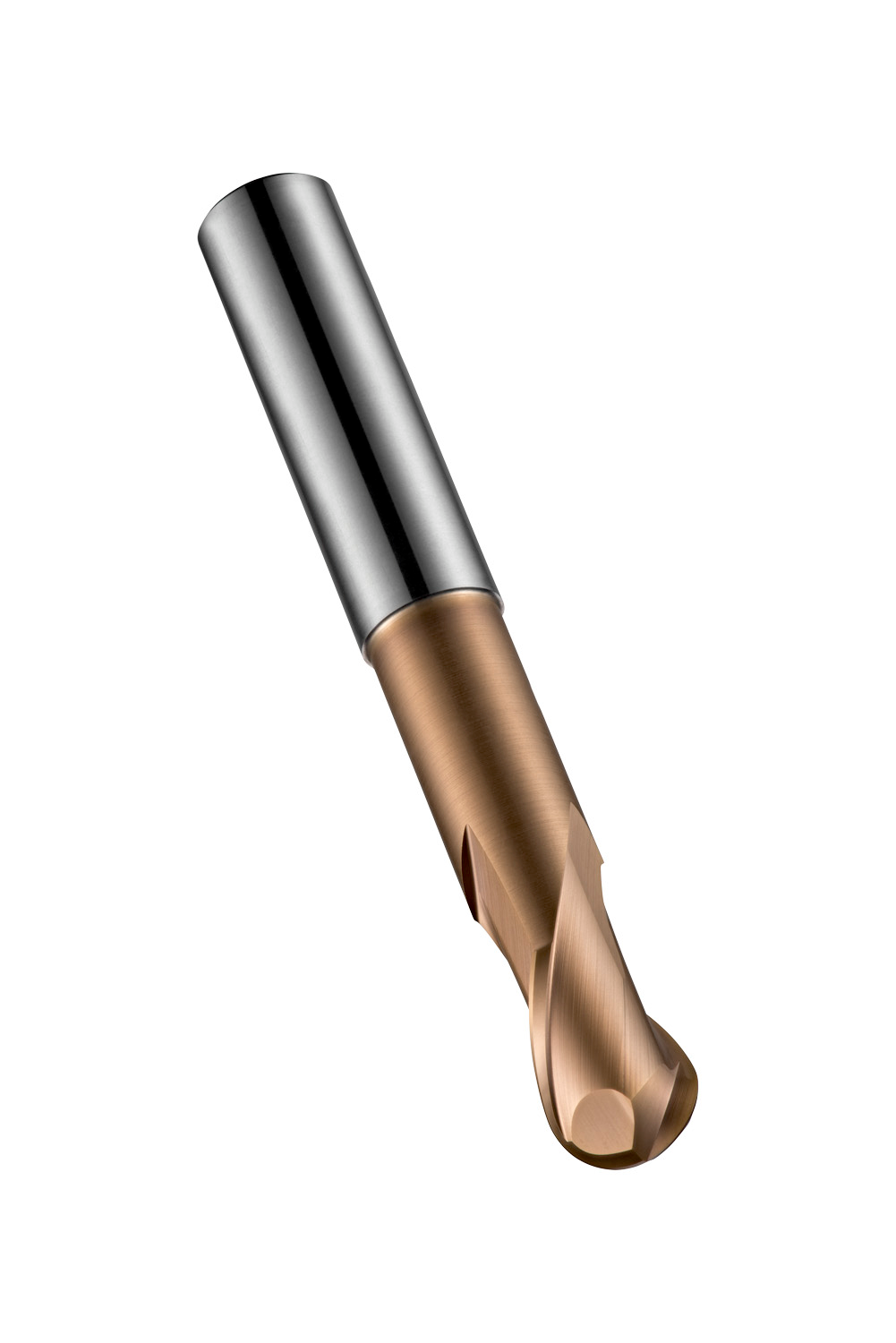

DORMER S5318.0 Carbide Cutters

Product Code: S5318.0

$182.41$165.83 Ex. GST

Product Code: S5318.0 SKU S5318.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Extra short series ball-nose end mill with 2 flutes, diameter 8mm with 12mm length of cut, 75mm overall length, 40mm reach with neck relief and 4mm full profile radius, according to DORMER standard with a 8mm plain shank, solid carbide with TiSiN coating, 30° helix and -10° rake angle for copy milling in hardened materials

Additional information

Weight 0.1771 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760680308
Product number (SAP): 86021621
Ordering code ANSI: S5318.0
Gross weight – grams: 52.4
Cutting diameter – millimeter (DC): 8 mm
Corner radius – millimeter (RE): 4 mm
Connection diameter – millimeter (DCON MS): 8 mm
Depth of cut maximum – millimeter (APMX): 12 mm
Overall length – millimeter (OAL): 75 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 40 mm
Neck diameter – millimeter (DN): 7.4 mm
Radial rake angle (GAMF): -10
With Neck: Yes
ISO: S5318.0

Brand

DORMER
