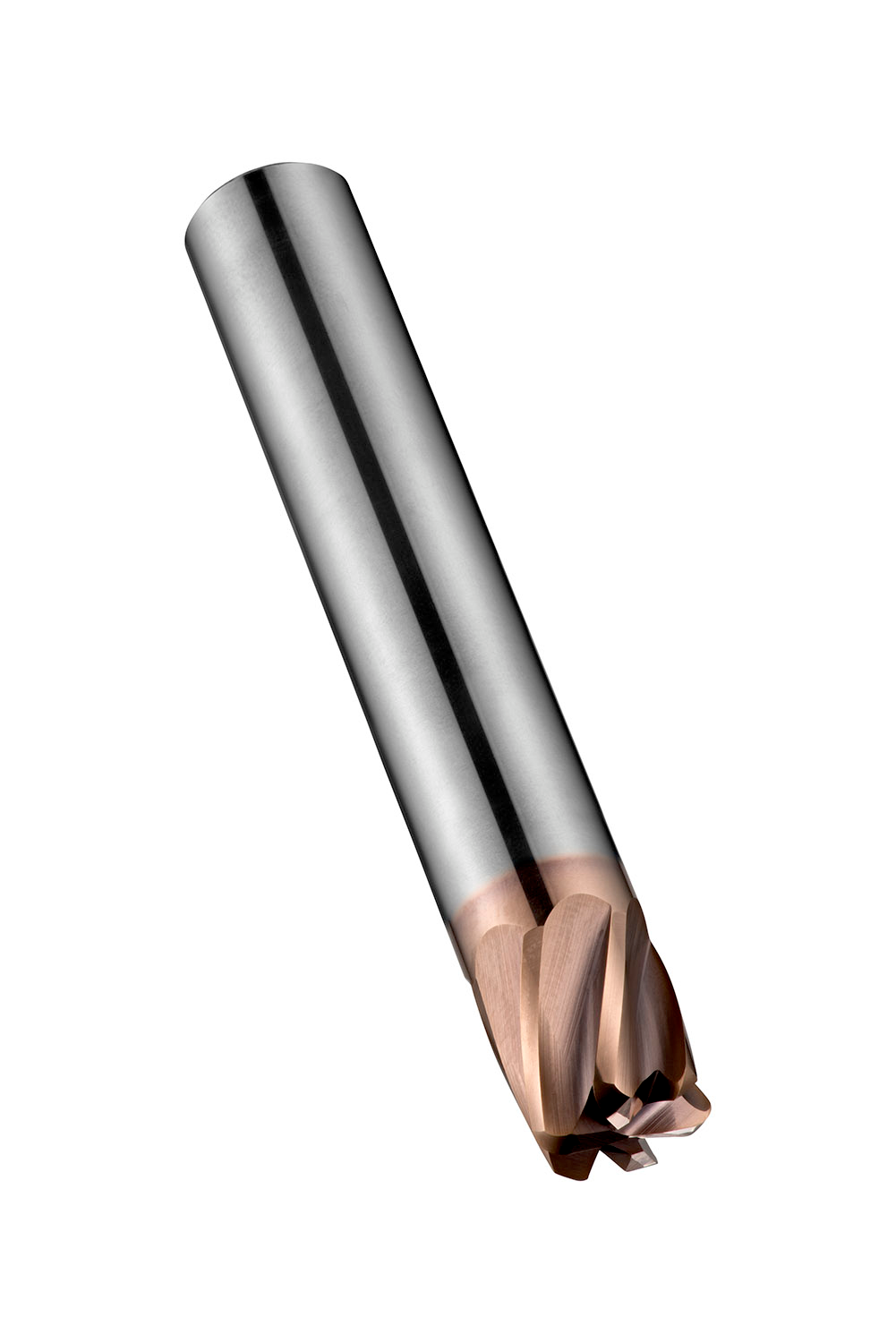

DORMER S53610.0XR2.0 Carbide Cutters

Product Code: S53610.0XR2.0

$310.44$282.22 Ex. GST

Product Code: S53610.0XR2.0 SKU S53610.0XR2.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Extra short series high feed end mill with 6 flutes, diameter 10mm with 10mm length of cut, 75mm overall length and 2mm corner radii, according to DORMER standard with a 10mm plain shank, solid carbide with TiSiN coating, 25° helix and 0° rake angle for face milling, copy milling, ramping and helical milling in hardened materials

Additional information

Weight 0.3014 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760683897
Product number (SAP): 86021976
Ordering code ANSI: S53610.0XR2.0
Gross weight – grams: 86
Cutting diameter – millimeter (DC): 10 mm
Corner radius – millimeter (RE): 2 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 10 mm
Overall length – millimeter (OAL): 75 mm
Flute count (NOF): 6
Radial rake angle (GAMF): 0
ISO: S53610.0XR2.0

Brand

DORMER
