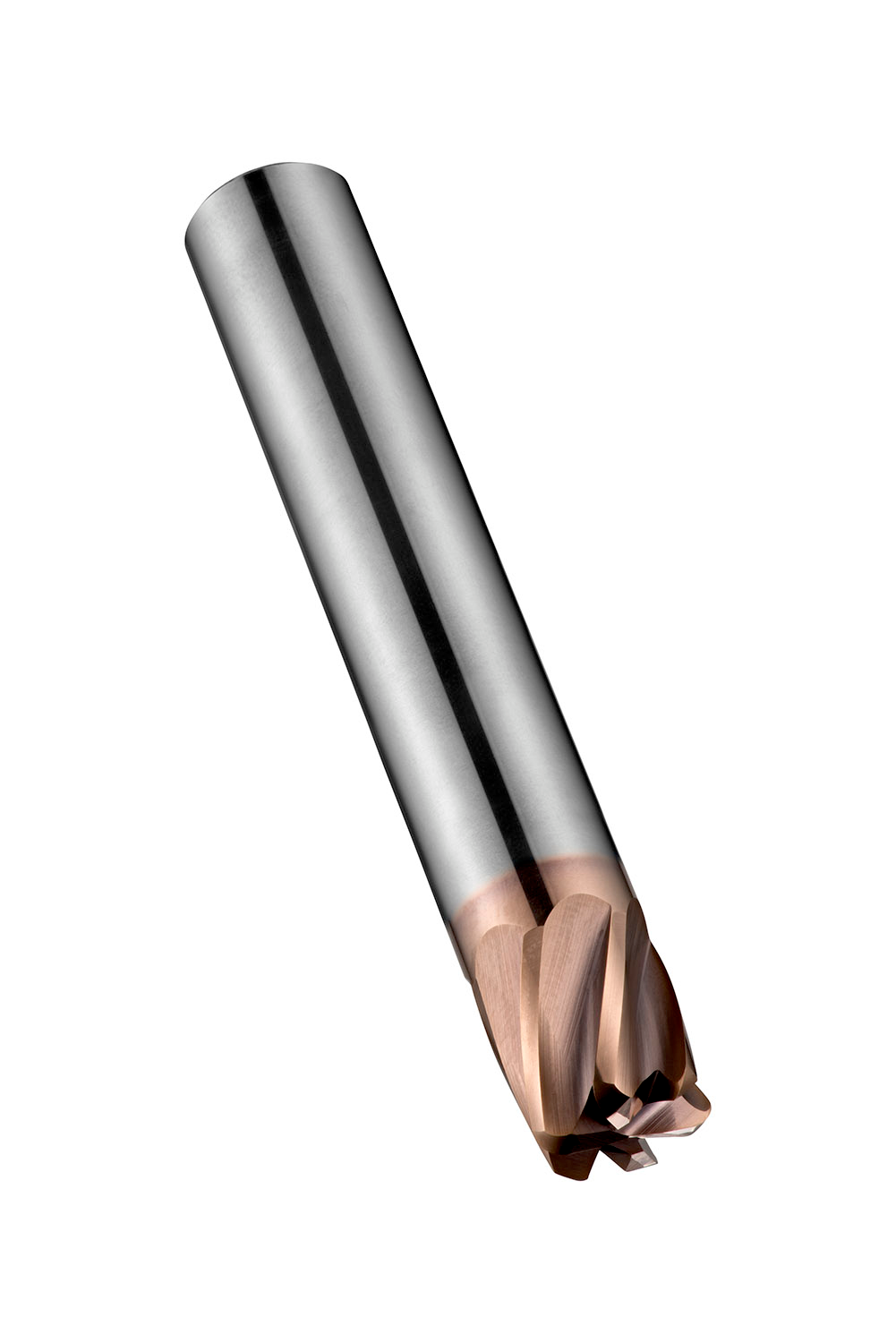

DORMER S53612.0XR2.0 Carbide Cutters

Product Code: S53612.0XR2.0

$427.14$388.31 Ex. GST

Product Code: S53612.0XR2.0 SKU S53612.0XR2.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Extra short series high feed end mill with 6 flutes, diameter 12mm with 12mm length of cut, 75mm overall length and 2mm corner radii, according to DORMER standard with a 12mm plain shank, solid carbide with TiSiN coating, 25° helix and 0° rake angle for face milling, copy milling, ramping and helical milling in hardened materials

Additional information

Weight 0.4147 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760683903
Product number (SAP): 86021977
Ordering code ANSI: S53612.0XR2.0
Gross weight – grams: 123.2
Cutting diameter – millimeter (DC): 12 mm
Corner radius – millimeter (RE): 2 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 12 mm
Overall length – millimeter (OAL): 75 mm
Flute count (NOF): 6
Radial rake angle (GAMF): 0
ISO: S53612.0XR2.0

Brand

DORMER
