DORMER S5611.0 Carbide Cutters

Product Code: S5611.0

$109.34$99.40 Ex. GST

Product Code: S5611.0 SKU S5611.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

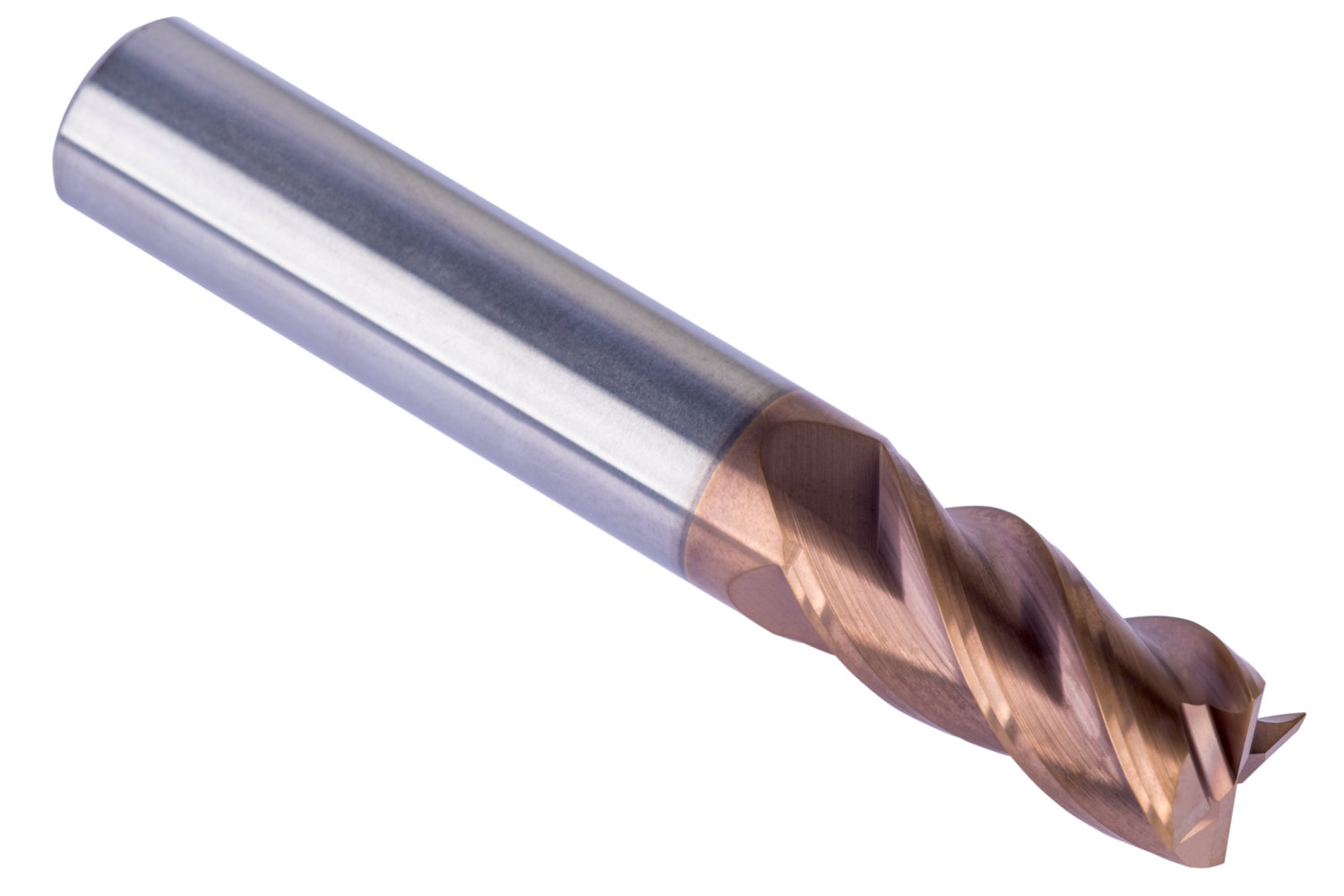

Regular length End mill with 4 flutes, diameter 1mm with 3mm length of cut and 50mm overall length, according to DORMER standard with a 6mm plain shank, solid carbide with TiSiN coating, 40° helix and -6° rake angle for shoulder milling, plunging, ramping, progressive plunge milling and helical milling in hardened materials

Additional information

Weight 0.1062 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760950906
Product number (SAP): 86038195
Ordering code ANSI: S5611.0
Gross weight – grams: 23.1
Cutting diameter – millimeter (DC): 1 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 3 mm
Overall length – millimeter (OAL): 50 mm
Flute count (NOF): 4
Radial rake angle (GAMF): -6
ISO: S5611.0

Brand

DORMER
