DORMER S56116.0 Carbide Cutters

Product Code: S56116.0

$492.86$448.05 Ex. GST

Product Code: S56116.0 SKU S56116.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

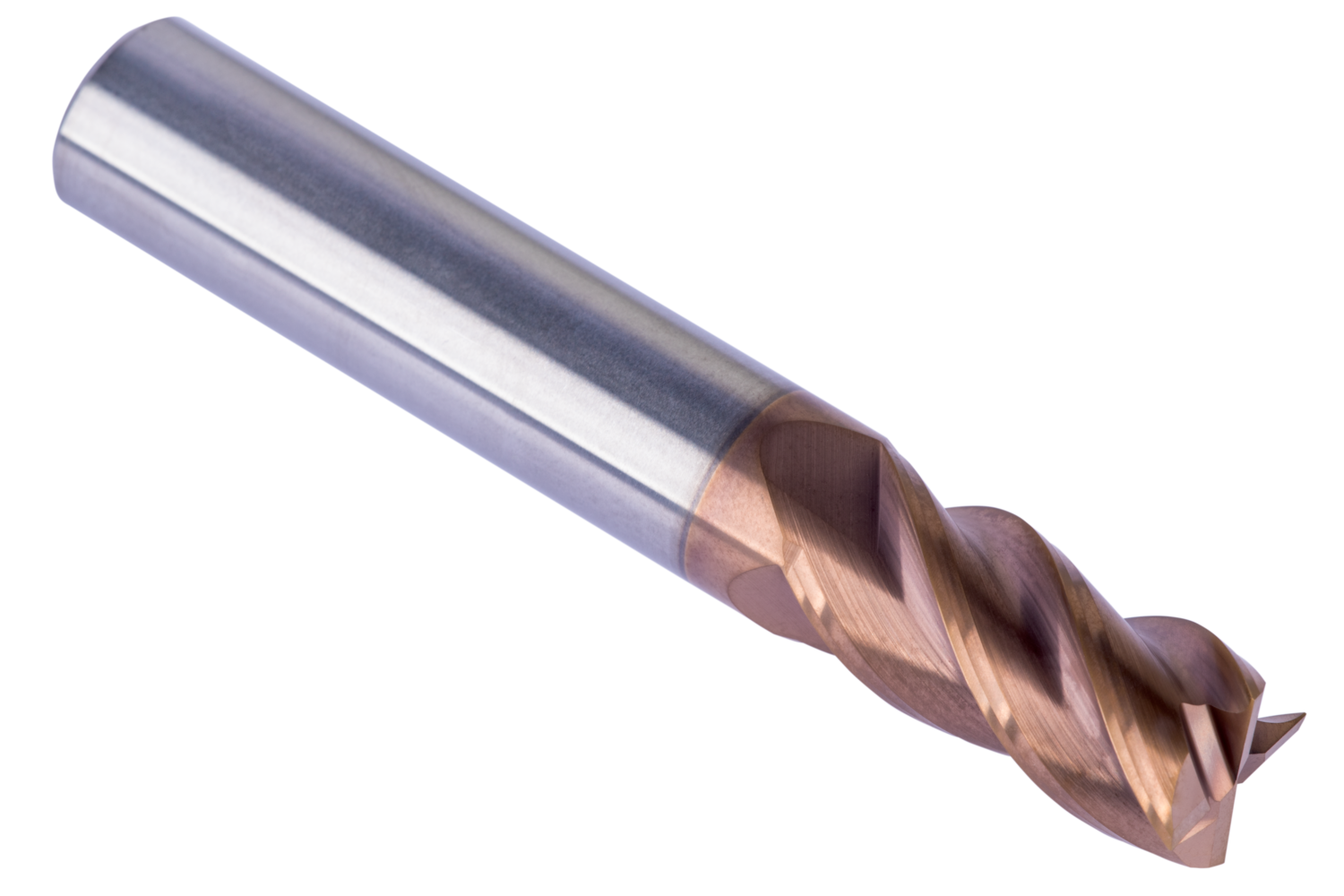

Regular length End mill with 4 flutes, diameter 16mm with 32mm length of cut and 90mm overall length, according to DORMER standard with a 16mm plain shank, solid carbide with TiSiN coating, 40° helix and -6° rake angle for shoulder milling, plunging, ramping, progressive plunge milling and helical milling in hardened materials

Additional information

Weight 0.4785 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760951026
Product number (SAP): 86038207
Ordering code ANSI: S56116.0
Gross weight – grams: 234.1
Cutting diameter – millimeter (DC): 16 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 90 mm
Flute count (NOF): 4
Radial rake angle (GAMF): -6
ISO: S56116.0

Brand

DORMER
