DORMER S56120.0 Carbide Cutters

Product Code: S56120.0

$763.64$694.22 Ex. GST

Product Code: S56120.0 SKU S56120.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

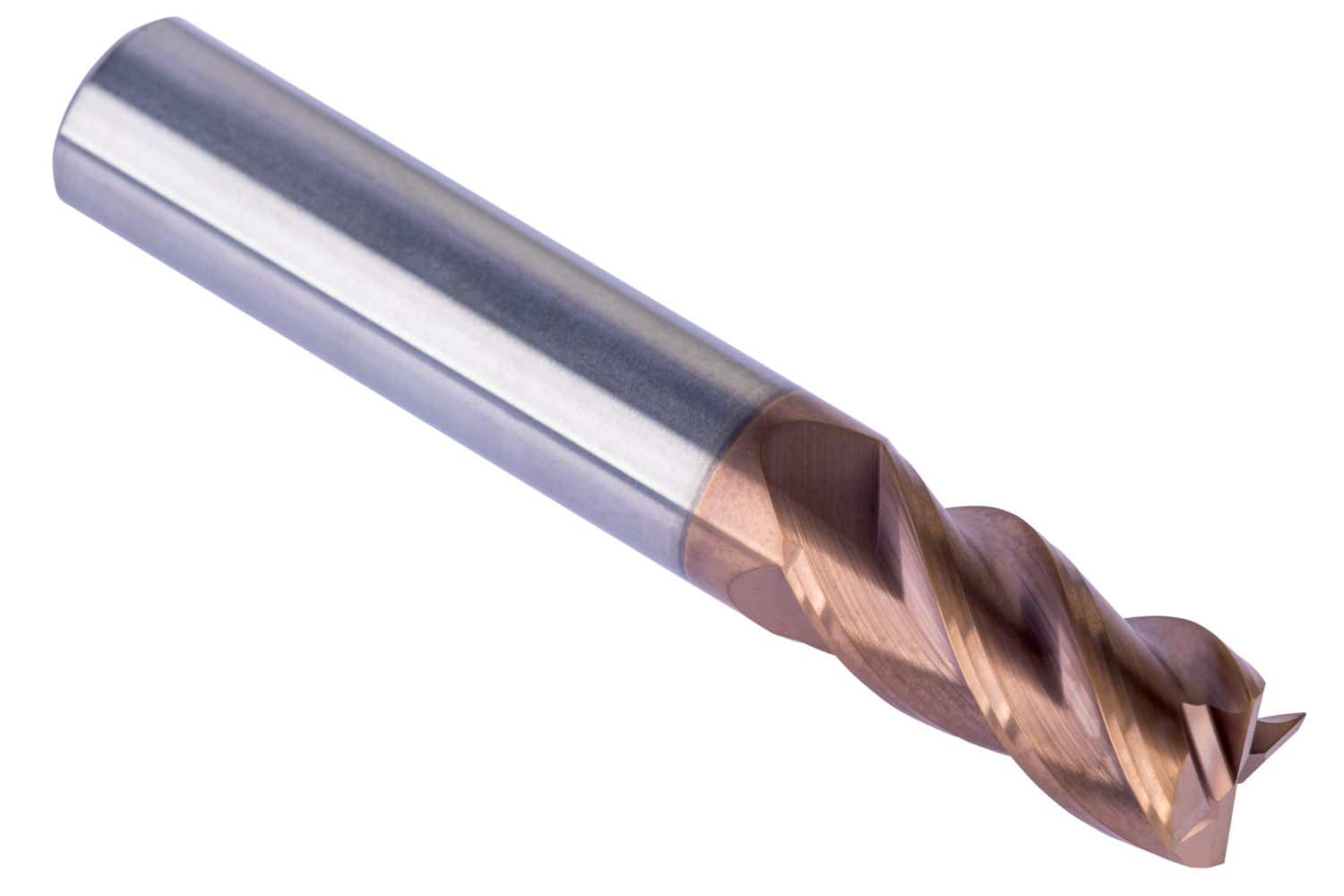

Regular length End mill with 4 flutes, diameter 20mm with 38mm length of cut and 100mm overall length, according to DORMER standard with a 20mm plain shank, solid carbide with TiSiN coating, 40° helix and -6° rake angle for shoulder milling, plunging, ramping, progressive plunge milling and helical milling in hardened materials

Additional information

Weight 0.7414 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760951040
Product number (SAP): 86038209
Ordering code ANSI: S56120.0
Gross weight – grams: 398.8
Cutting diameter – millimeter (DC): 20 mm
Connection diameter – millimeter (DCON MS): 20 mm
Depth of cut maximum – millimeter (APMX): 38 mm
Overall length – millimeter (OAL): 100 mm
Flute count (NOF): 4
Radial rake angle (GAMF): -6
ISO: S56120.0

Brand

DORMER
