DORMER S61020.0 Carbide Cutters

Product Code: S61020.0

$565.37$513.97 Ex. GST

Product Code: S61020.0 SKU S61020.0 Categories , ,
DORMER S61020.0 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

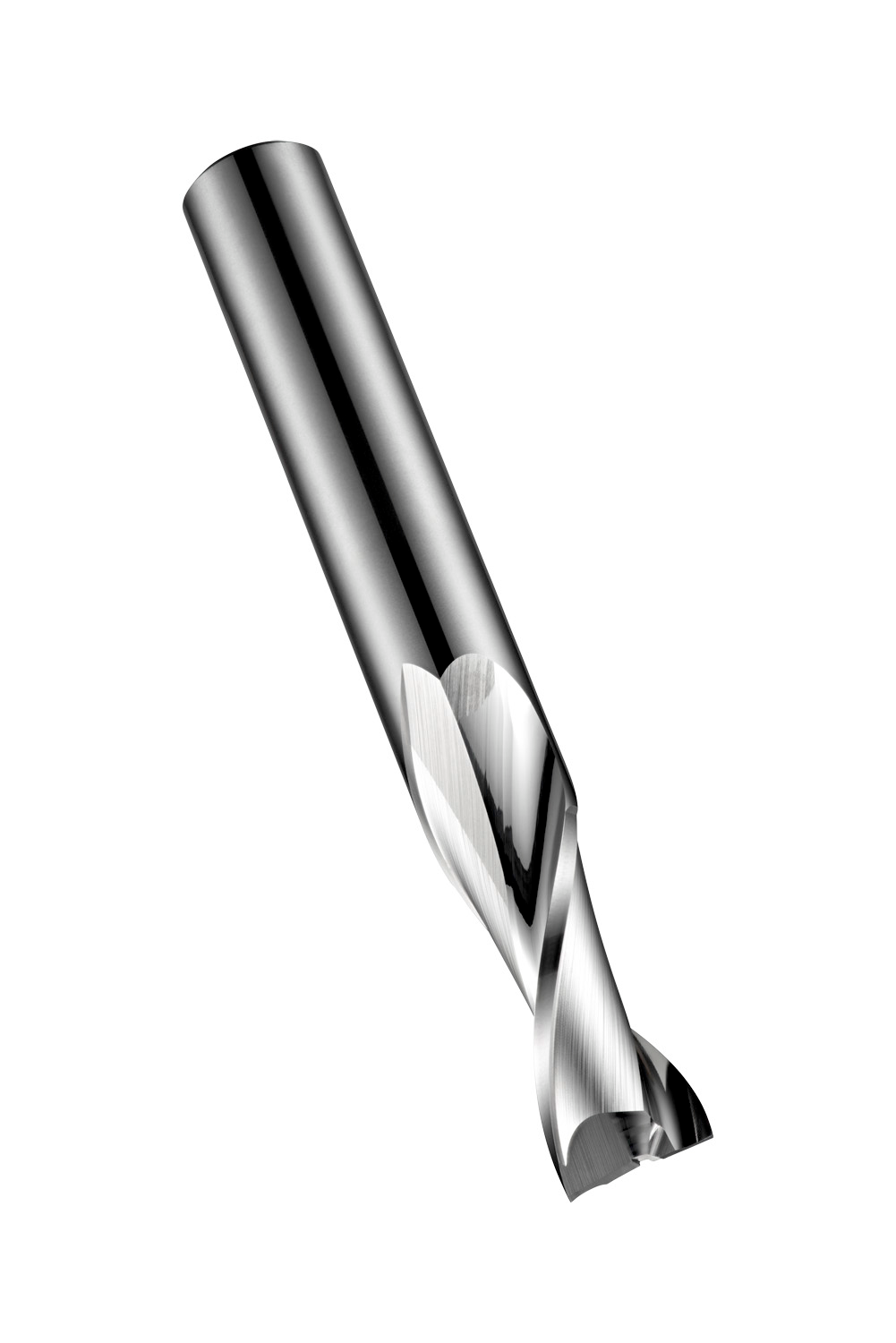

Short series end mill with 2 flutes, diameter 20mm with 38mm length of cut, 100mm overall length and 0.1mm corner radii, according to DORMER standard with a 20mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals

Additional information

Weight 0.5489 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760681534
Product number (SAP): 86021741
Ordering code ANSI: S61020.0
Gross weight – grams: 335.7
Cutting diameter – millimeter (DC): 20 mm
Corner radius – millimeter (RE): 0.1 mm
Connection diameter – millimeter (DCON MS): 20 mm
Depth of cut maximum – millimeter (APMX): 38 mm
Overall length – millimeter (OAL): 100 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 20
ISO: S61020.0
