DORMER S6104.0XD6 Carbide Cutters

Product Code: S6104.0XD6

$84.98$77.25 Ex. GST

Product Code: S6104.0XD6 SKU S6104.0XD6 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

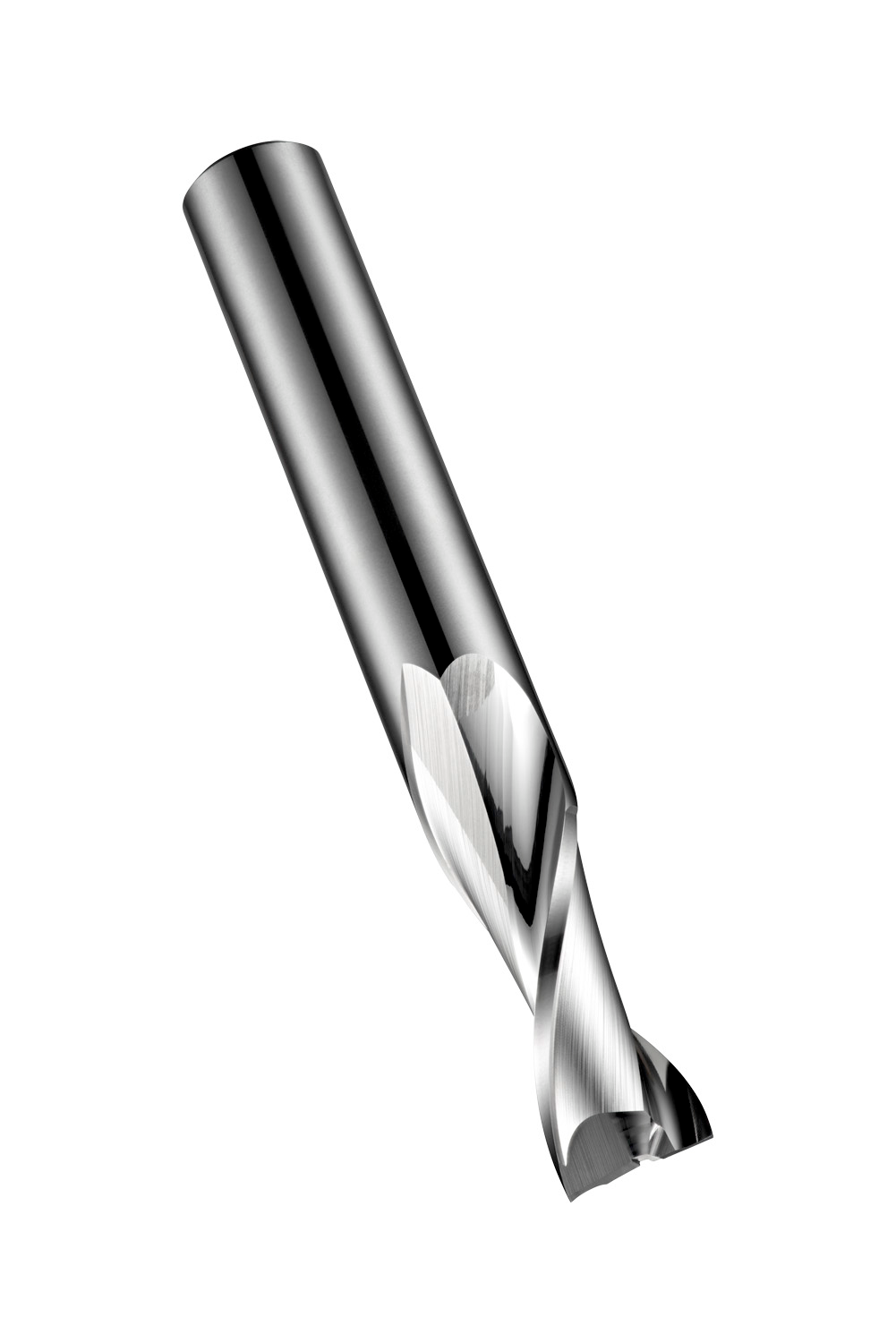

Short series end mill with 2 flutes, diameter 4mm with 12mm length of cut, 50mm overall length and 0.1mm corner radii, according to DORMER standard with a 6mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals

Additional information

Weight 0.0825 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760681442
Product number (SAP): 86021733
Ordering code ANSI: S6104.0XD6
Gross weight – grams: 22
Cutting diameter – millimeter (DC): 4 mm
Corner radius – millimeter (RE): 0.1 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 12 mm
Overall length – millimeter (OAL): 50 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 20
With Neck: Yes
ISO: S6104.0XD6

Brand

DORMER
