DORMER S6108.0 Carbide Cutters

Product Code: S6108.0

$121.23$110.21 Ex. GST

Product Code: S6108.0 SKU S6108.0 Categories , ,
DORMER S6108.0 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

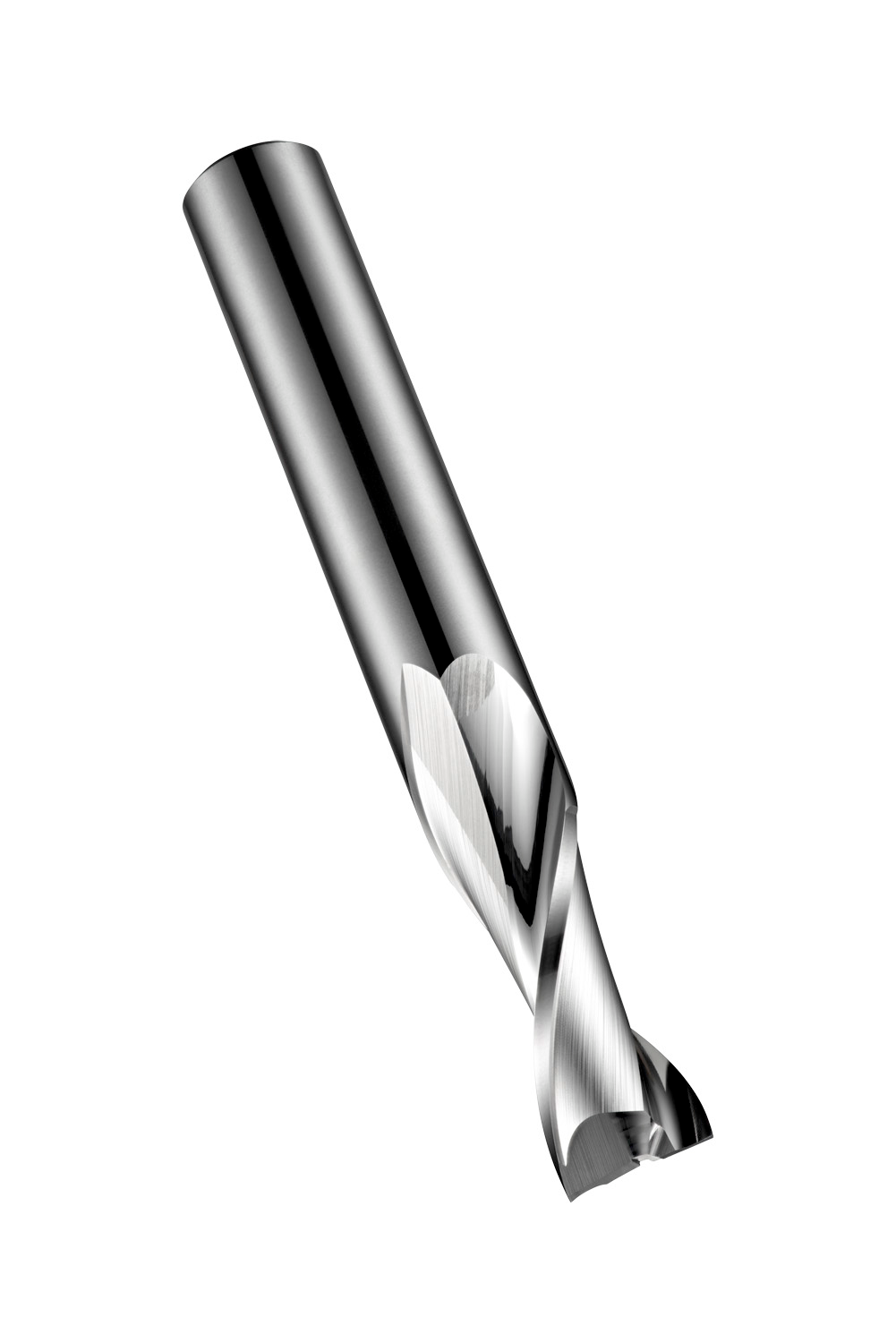

Short series end mill with 2 flutes, diameter 8mm with 20mm length of cut, 64mm overall length and 0.1mm corner radii, according to DORMER standard with a 8mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals

Additional information

Weight 0.1177 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760681473
Product number (SAP): 86021736
Ordering code ANSI: S6108.0
Gross weight – grams: 42.3
Cutting diameter – millimeter (DC): 8 mm
Corner radius – millimeter (RE): 0.1 mm
Connection diameter – millimeter (DCON MS): 8 mm
Depth of cut maximum – millimeter (APMX): 20 mm
Overall length – millimeter (OAL): 64 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 20
ISO: S6108.0

Brand

DORMER
