DORMER S61116.0 Carbide Cutters

Product Code: S61116.0

$441.87$401.70 Ex. GST

Product Code: S61116.0 SKU S61116.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

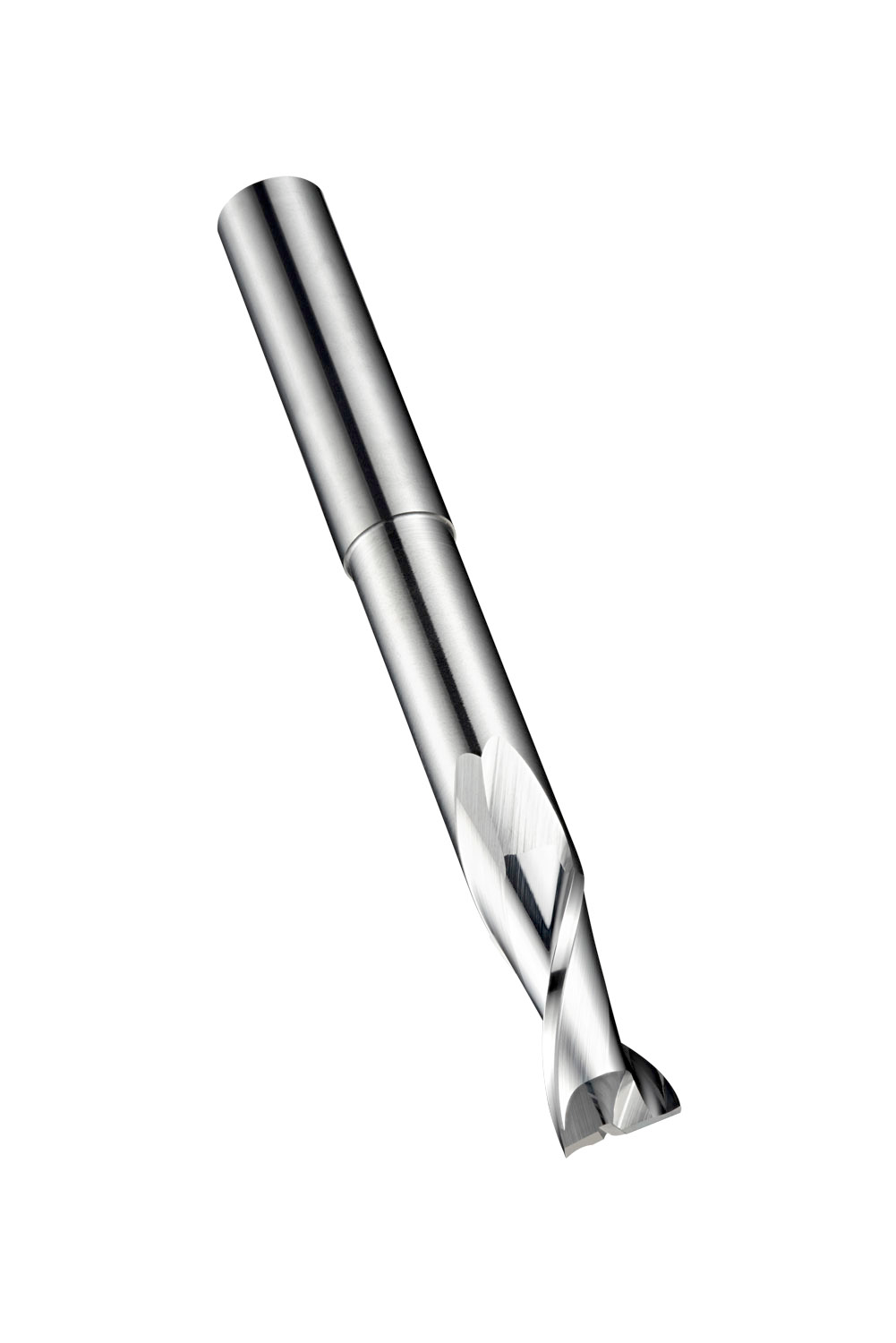

Short series end mill with 2 flutes, diameter 16mm with 32mm length of cut, 125mm overall length, 75mm reach with neck relief and 0.1mm corner radii, according to DORMER standard with a 16mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling, ramping and helical milling in non-ferrous metals

Additional information

Weight 0.4290 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760681381
Product number (SAP): 86021728
Ordering code ANSI: S61116.0
Gross weight – grams: 294.6
Cutting diameter – millimeter (DC): 16 mm
Corner radius – millimeter (RE): 0.1 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 125 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 75 mm
Neck diameter – millimeter (DN): 15 mm
Radial rake angle (GAMF): 20
With Neck: Yes
ISO: S61116.0

Brand

DORMER
