DORMER S6113.0XD3 Carbide Cutters

Product Code: S6113.0XD3

$94.61$86.01 Ex. GST

Product Code: S6113.0XD3 SKU S6113.0XD3 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

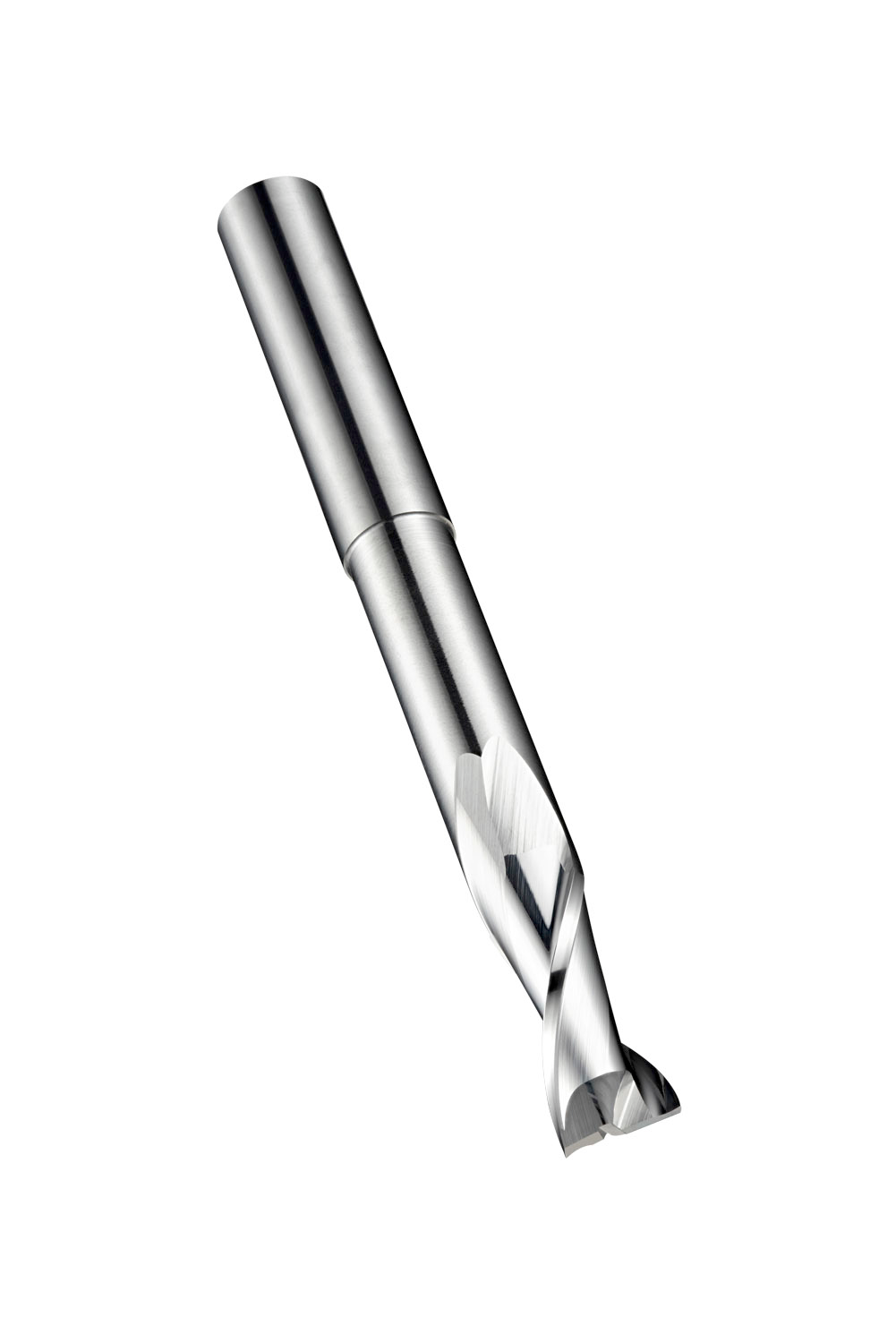

Short series End mill with 2 flutes, diameter 3mm with 9mm length of cut, 40mm overall length, 15mm reach with neck relief and 0.1mm corner radii, according to DORMER standard with a 3mm plain shank, solid carbide with polished finish, 30° helix and 20° rake angle for shoulder milling, slot milling, ramping and helical milling in non-ferrous metals

Additional information

Weight 0.0919 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760949931
Product number (SAP): 86038211
Ordering code ANSI: S6113.0XD3
Gross weight – grams: 6.35
Cutting diameter – millimeter (DC): 3 mm
Corner radius – millimeter (RE): 0.1 mm
Connection diameter – millimeter (DCON MS): 3 mm
Depth of cut maximum – millimeter (APMX): 9 mm
Overall length – millimeter (OAL): 40 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 15 mm
Neck diameter – millimeter (DN): 2.8 mm
Radial rake angle (GAMF): 20
With Neck: Yes
ISO: S6113.0XD3

Brand

DORMER
