DORMER S6121.0 Carbide Cutters

Description

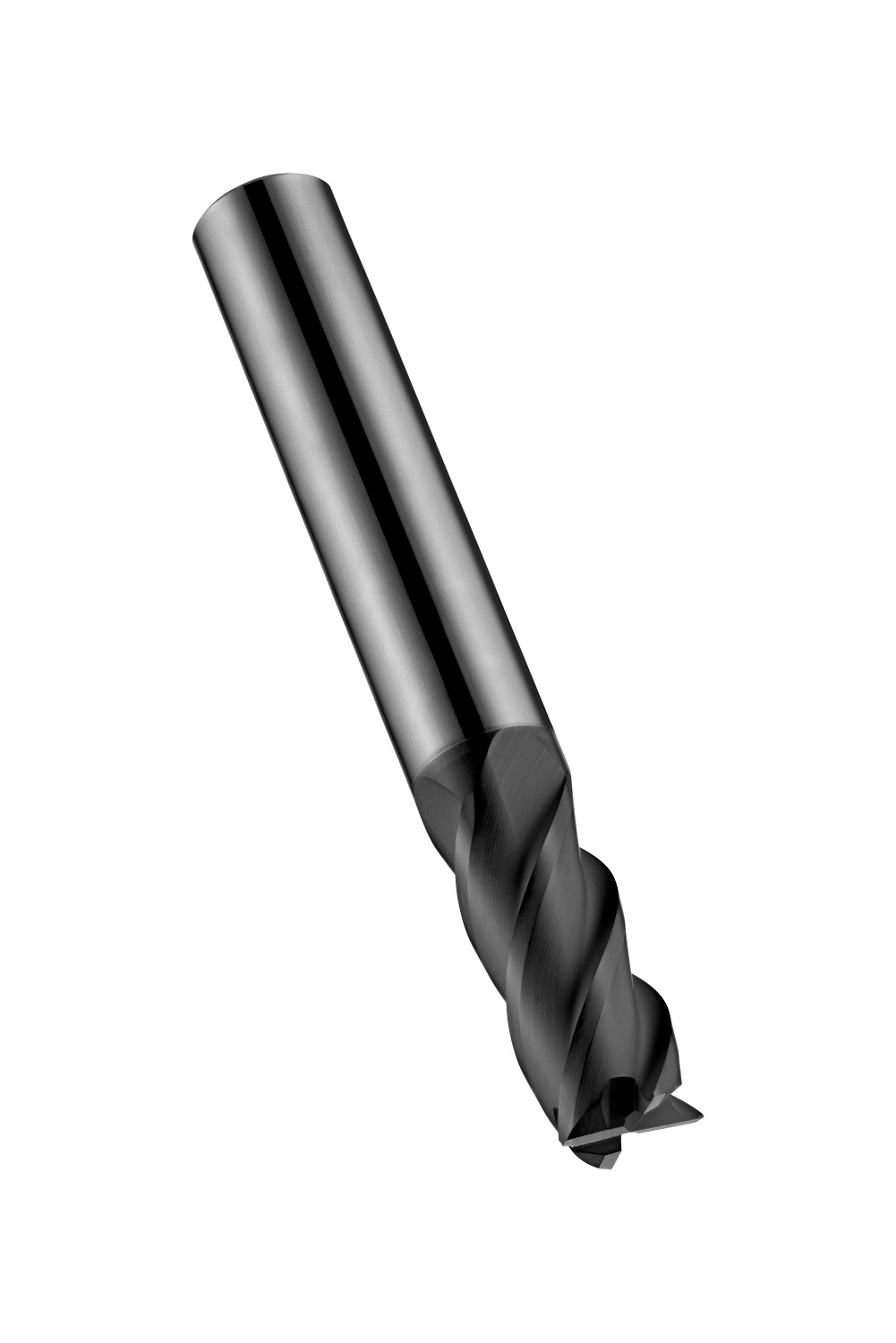

Short series end mill with 4 flutes, diameter 1mm with 3mm length of cut and 50mm overall length, according to DORMER standard with a 3mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite

Additional information

Weight	0.1595 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760681541 Product number (SAP): 86021742 Ordering code ANSI: S6121.0 Gross weight – grams: 6.7 Cutting diameter – millimeter (DC): 1 mm Connection diameter – millimeter (DCON MS): 3 mm Depth of cut maximum – millimeter (APMX): 3 mm Overall length – millimeter (OAL): 50 mm Flute count (NOF): 4 Radial rake angle (GAMF): 10 With Neck: Yes ISO: S6121.0

Need Technical Advice?

Description

Additional information

Brand

DORMER
