DORMER S6124.0 Carbide Cutters

Product Code: S6124.0

$173.35$157.59 Ex. GST

Product Code: S6124.0 SKU S6124.0 Categories 10 - SC Cutters, CUTTING TOOLS (HSS & Carbide), Milling

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

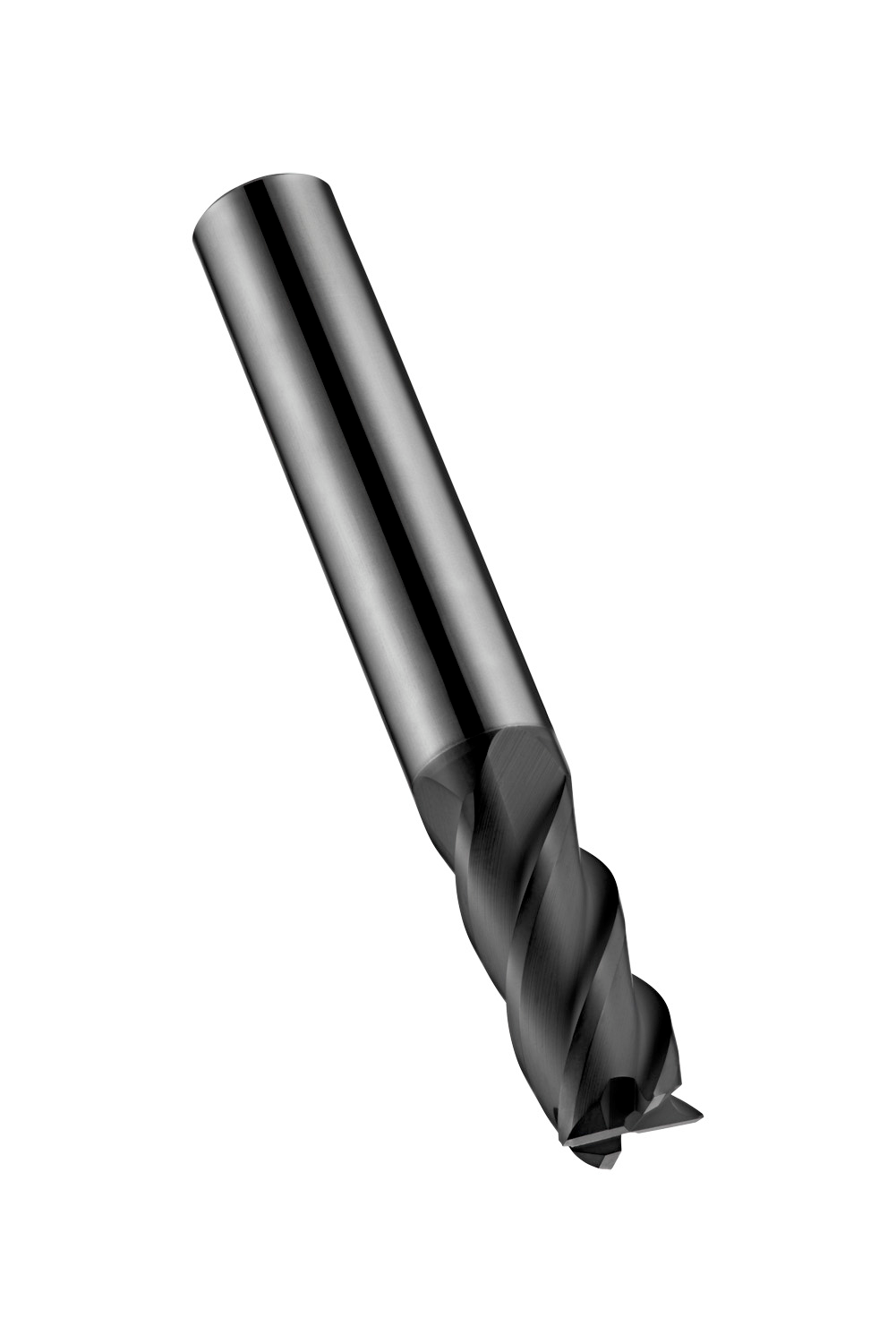

Short series end mill with 4 flutes, diameter 4mm with 12mm length of cut and 50mm overall length, according to DORMER standard with a 4mm plain shank, solid carbide with Diamond coating, 40° helix and 10° rake angle for shoulder milling and plunging in graphite

Additional information

Weight	0.1683 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760681596 Product number (SAP): 86021747 Ordering code ANSI: S6124.0 Gross weight – grams: 11.5 Cutting diameter – millimeter (DC): 4 mm Connection diameter – millimeter (DCON MS): 4 mm Depth of cut maximum – millimeter (APMX): 12 mm Overall length – millimeter (OAL): 50 mm Flute count (NOF): 4 Radial rake angle (GAMF): 10 ISO: S6124.0
