DORMER S61414.0 Carbide Cutters

Product Code: S61414.0

$277.59$252.35 Ex. GST

Product Code: S61414.0 SKU S61414.0 Categories , ,
DORMER S61414.0 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

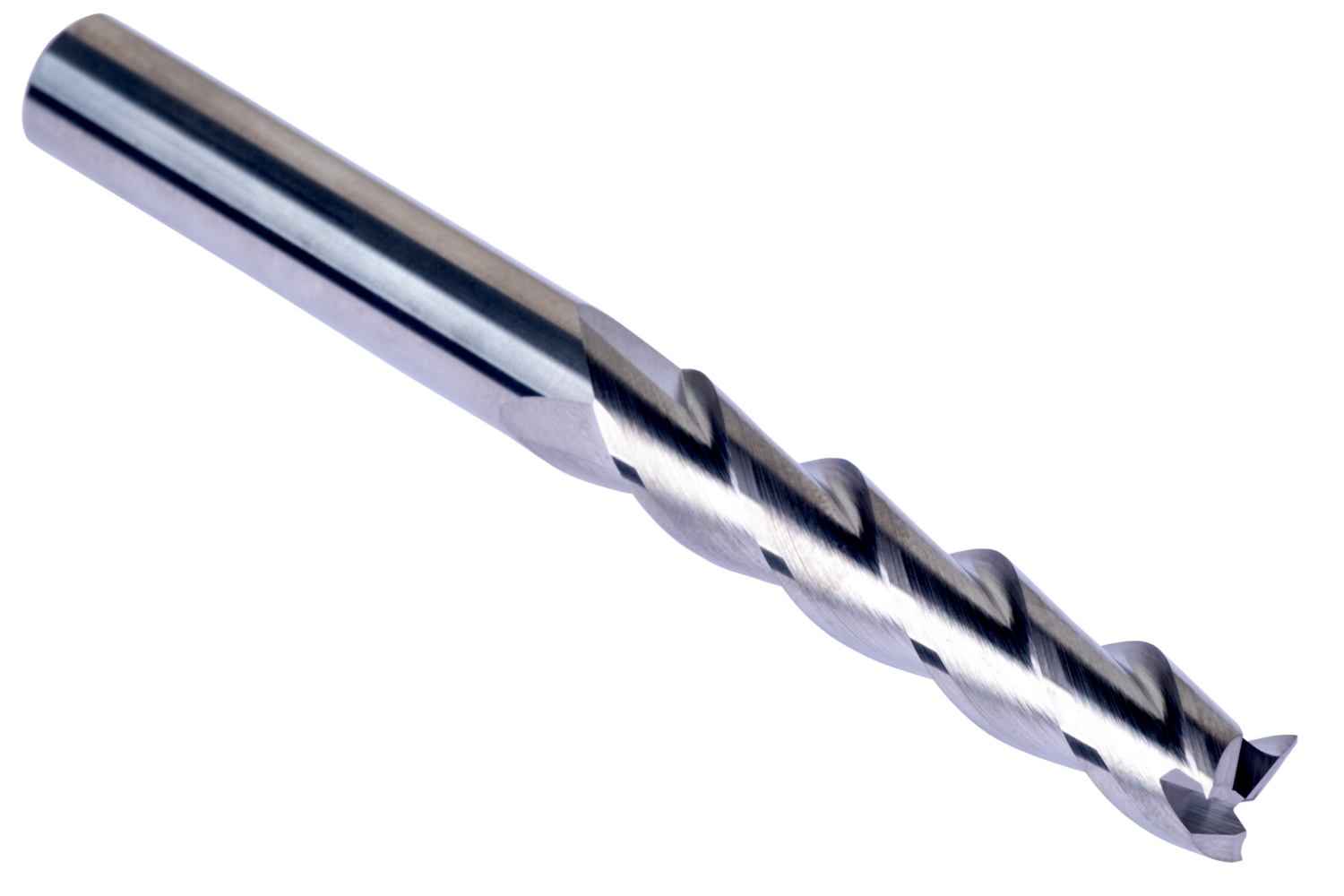

Extra long series End mill with 3 flutes, diameter 14mm with 57mm length of cut and 125mm overall length, according to DORMER standard with a 14mm plain shank, solid carbide with bright finish, 40° helix and 13° rake angle for shoulder milling in non-ferrous metals

Additional information

Weight 0.2695 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760950265
Product number (SAP): 86038244
Ordering code ANSI: S61414.0
Gross weight – grams: 241.2
Cutting diameter – millimeter (DC): 14 mm
Connection diameter – millimeter (DCON MS): 14 mm
Depth of cut maximum – millimeter (APMX): 57 mm
Overall length – millimeter (OAL): 125 mm
Flute count (NOF): 3
Radial rake angle (GAMF): 13
ISO: S61414.0

Brand

DORMER
