DORMER S6291.5 Carbide Cutters

Description

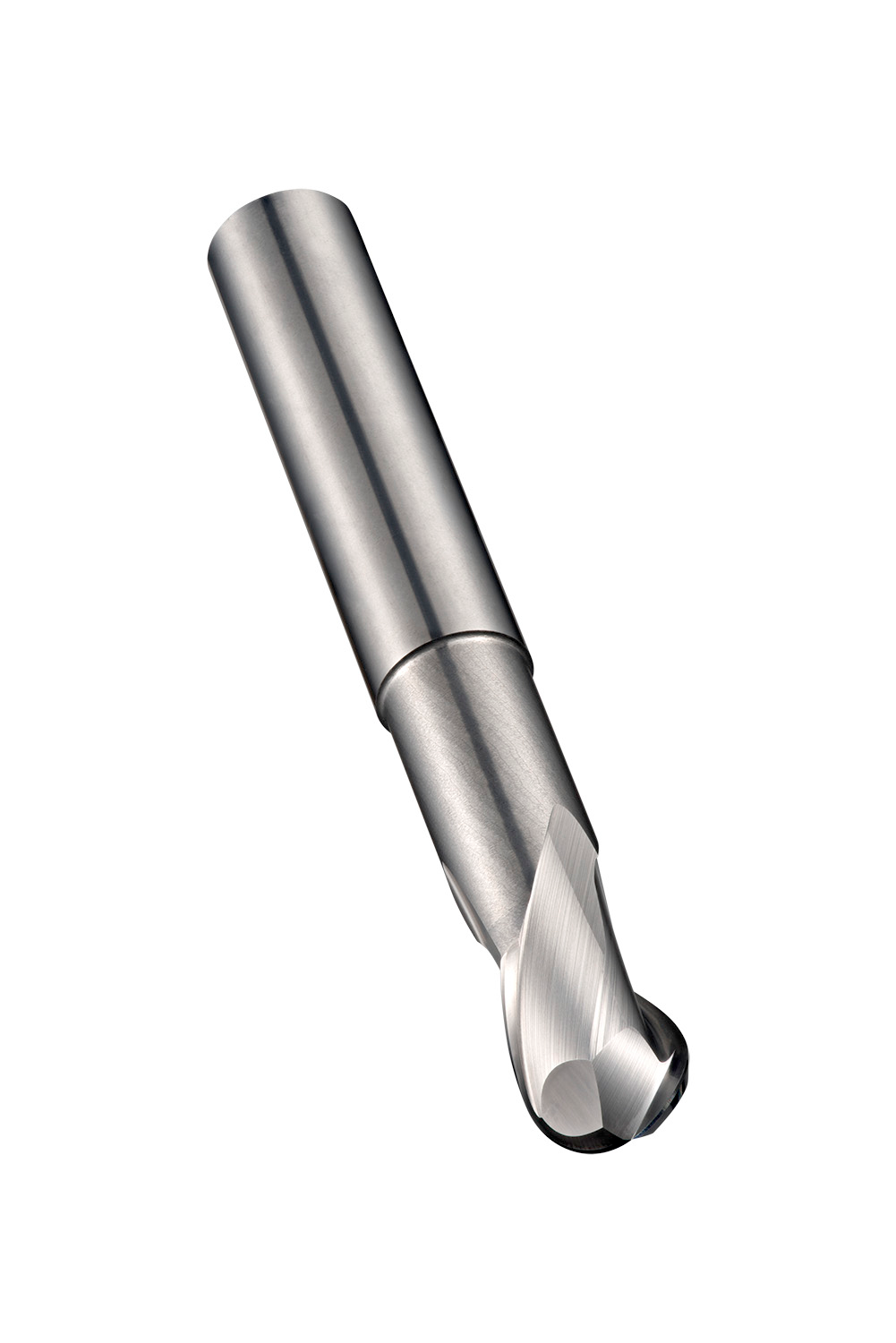

Extra short series Ball-nose end mill with 2 flutes, diameter 1.5mm with 1.2mm length of cut, 50mm overall length, 12mm reach with neck relief and 0.75mm full profile radius, according to DORMER standard with a 4mm plain shank, solid carbide with bright finish, 30° helix and 11° rake angle for copy milling in non-ferrous metals

Additional information

Weight	0.0709 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760949993 Product number (SAP): 86038217 Ordering code ANSI: S6291.5 Gross weight – grams: 14.3 Cutting diameter – millimeter (DC): 1.5 mm Corner radius – millimeter (RE): 0.75 mm Connection diameter – millimeter (DCON MS): 4 mm Depth of cut maximum – millimeter (APMX): 1.2 mm Overall length – millimeter (OAL): 50 mm Flute count (NOF): 2 Usable Length – millimeter (LU): 12 mm Neck diameter – millimeter (DN): 1.4 mm Radial rake angle (GAMF): 11 With Neck: Yes ISO: S6291.5
