DORMER S62910.0 Carbide Cutters

Product Code: S62910.0

$145.02$131.84 Ex. GST

Product Code: S62910.0 SKU S62910.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

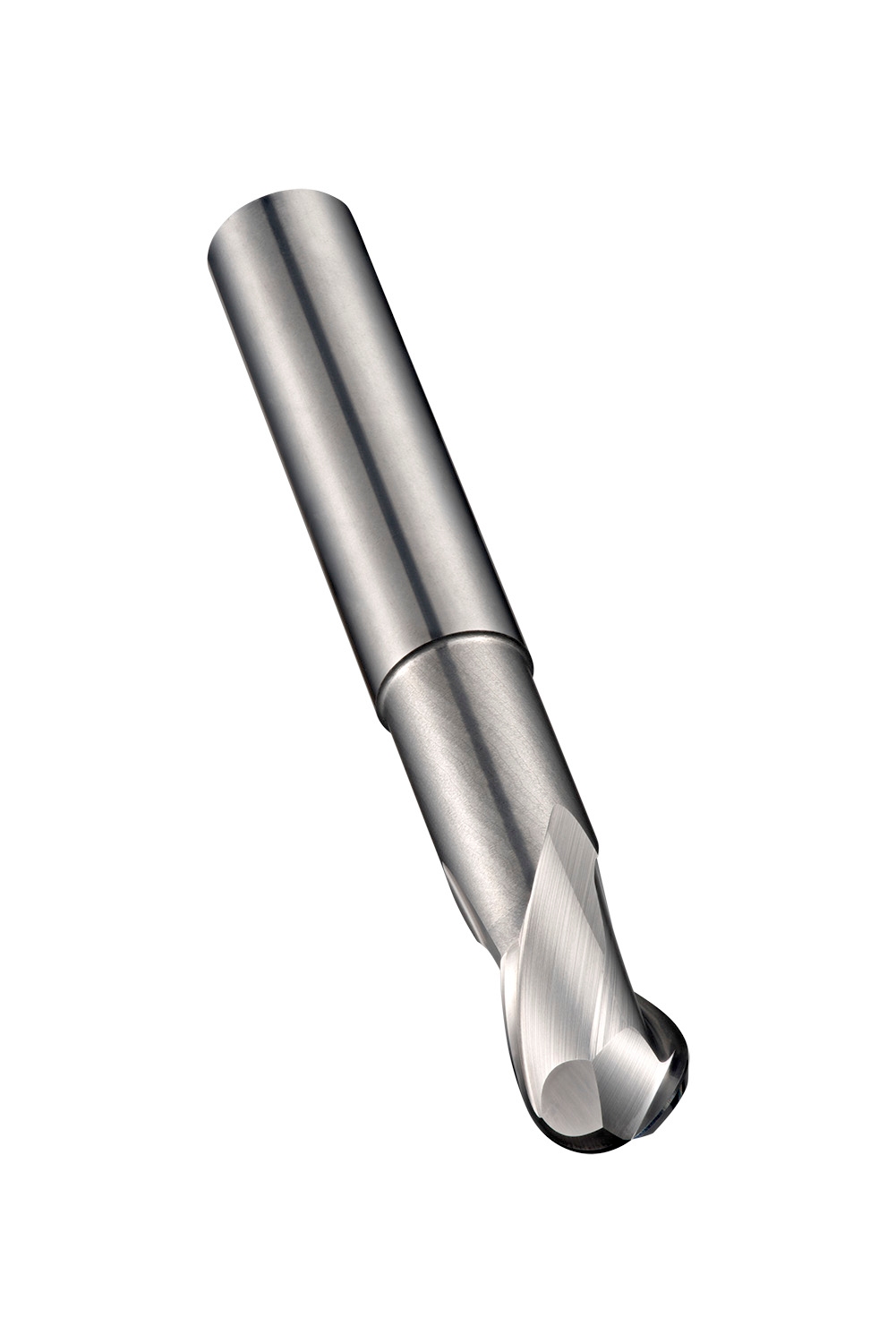

Extra short series ball-nose end mill with 2 flutes, diameter 10mm with 12mm length of cut, 75mm overall length, 35mm reach with neck relief and 5mm full profile radius, according to DORMER standard with a 10mm plain shank, solid carbide with polished finish, 30° helix and 15° rake angle for copy milling in non-ferrous metals

Additional information

Weight 0.1408 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760680841
Product number (SAP): 86021675
Ordering code ANSI: S62910.0
Gross weight – grams: 80
Cutting diameter – millimeter (DC): 10 mm
Corner radius – millimeter (RE): 5 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 12 mm
Overall length – millimeter (OAL): 75 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 35 mm
Neck diameter – millimeter (DN): 9.2 mm
Radial rake angle (GAMF): 15
With Neck: Yes
ISO: S62910.0

Brand

DORMER
