DORMER S62920.0 Carbide Cutters

Product Code: S62920.0

$510.98$464.53 Ex. GST

Product Code: S62920.0 SKU S62920.0 Categories , ,
DORMER S62920.0 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

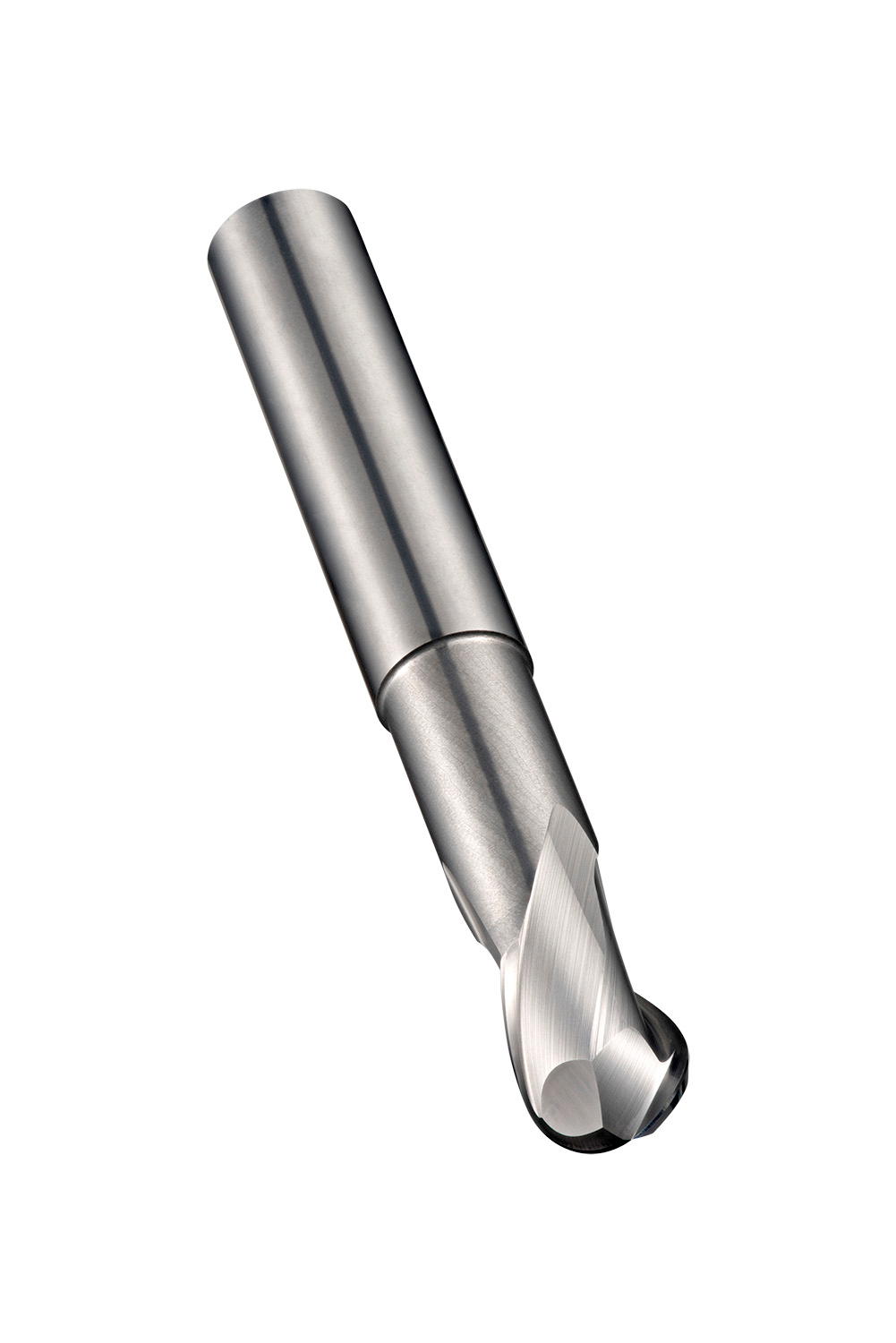

Extra short series ball-nose end mill with 2 flutes, diameter 20mm with 22mm length of cut, 100mm overall length, 50mm reach with neck relief and 10mm full profile radius, according to DORMER standard with a 20mm plain shank, solid carbide with polished finish, 30° helix and 15° rake angle for copy milling in non-ferrous metals

Additional information

Weight 0.4961 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760680872
Product number (SAP): 86021678
Ordering code ANSI: S62920.0
Gross weight – grams: 390.6
Cutting diameter – millimeter (DC): 20 mm
Corner radius – millimeter (RE): 10 mm
Connection diameter – millimeter (DCON MS): 20 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 100 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 50 mm
Neck diameter – millimeter (DN): 19 mm
Radial rake angle (GAMF): 15
With Neck: Yes
ISO: S62920.0

Brand

DORMER
