DORMER S6294.0 Carbide Cutters

Product Code: S6294.0

$77.04$70.04 Ex. GST

Product Code: S6294.0 SKU S6294.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

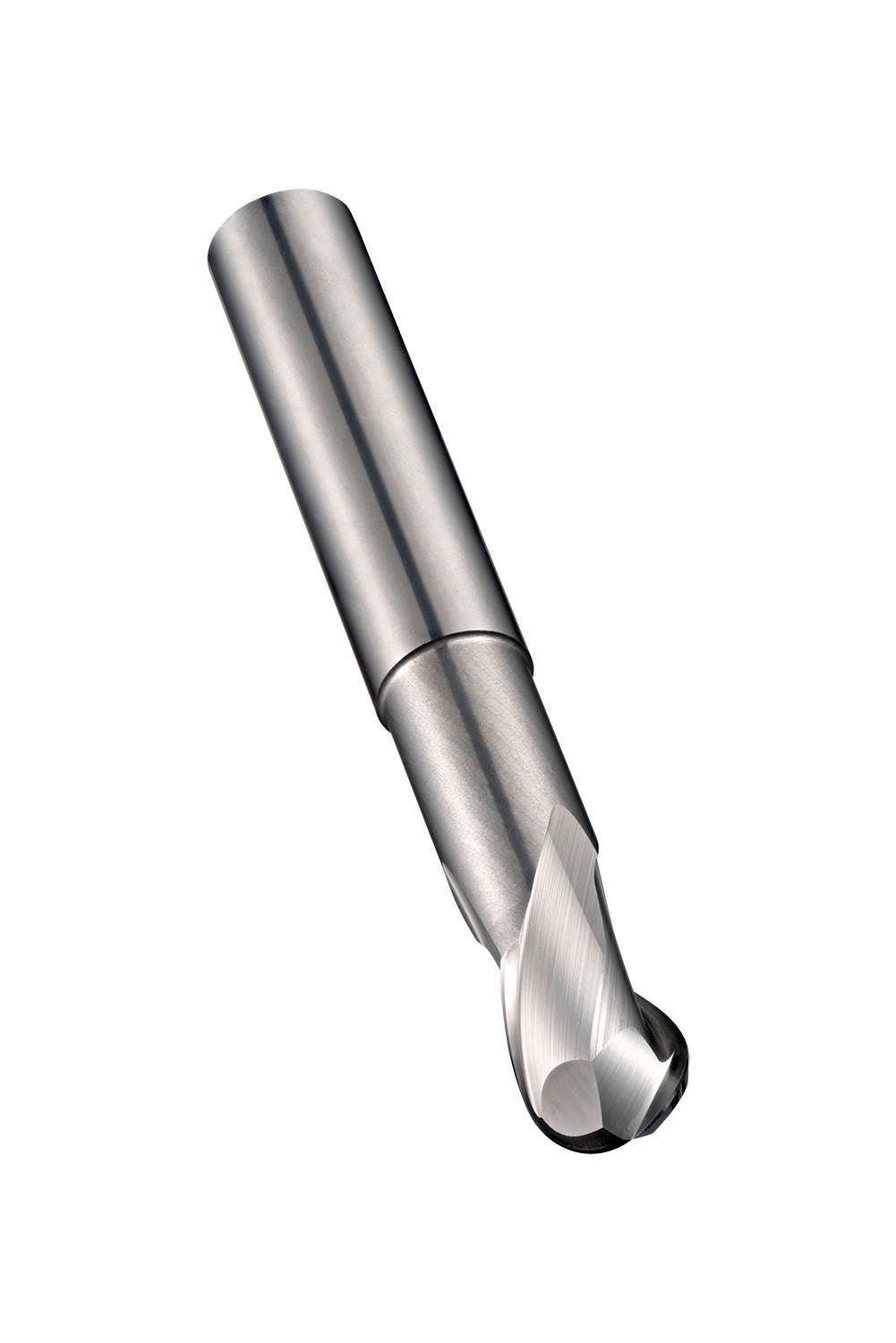

Extra short series ball-nose end mill with 2 flutes, diameter 4mm with 6mm length of cut, 57mm overall length, 20mm reach with neck relief and 2mm full profile radius, according to DORMER standard with a 6mm plain shank, solid carbide with polished finish, 30° helix and 15° rake angle for copy milling in non-ferrous metals

Additional information

Weight 0.0748 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760680803
Product number (SAP): 86021671
Ordering code ANSI: S6294.0
Gross weight – grams: 23.9
Cutting diameter – millimeter (DC): 4 mm
Corner radius – millimeter (RE): 2 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 6 mm
Overall length – millimeter (OAL): 57 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 20 mm
Neck diameter – millimeter (DN): 2.7 mm
Radial rake angle (GAMF): 15
With Neck: Yes
ISO: S6294.0

Brand

DORMER
