DORMER S6296.0 Carbide Cutters

Product Code: S6296.0

$78.75$71.59 Ex. GST

Product Code: S6296.0 SKU S6296.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

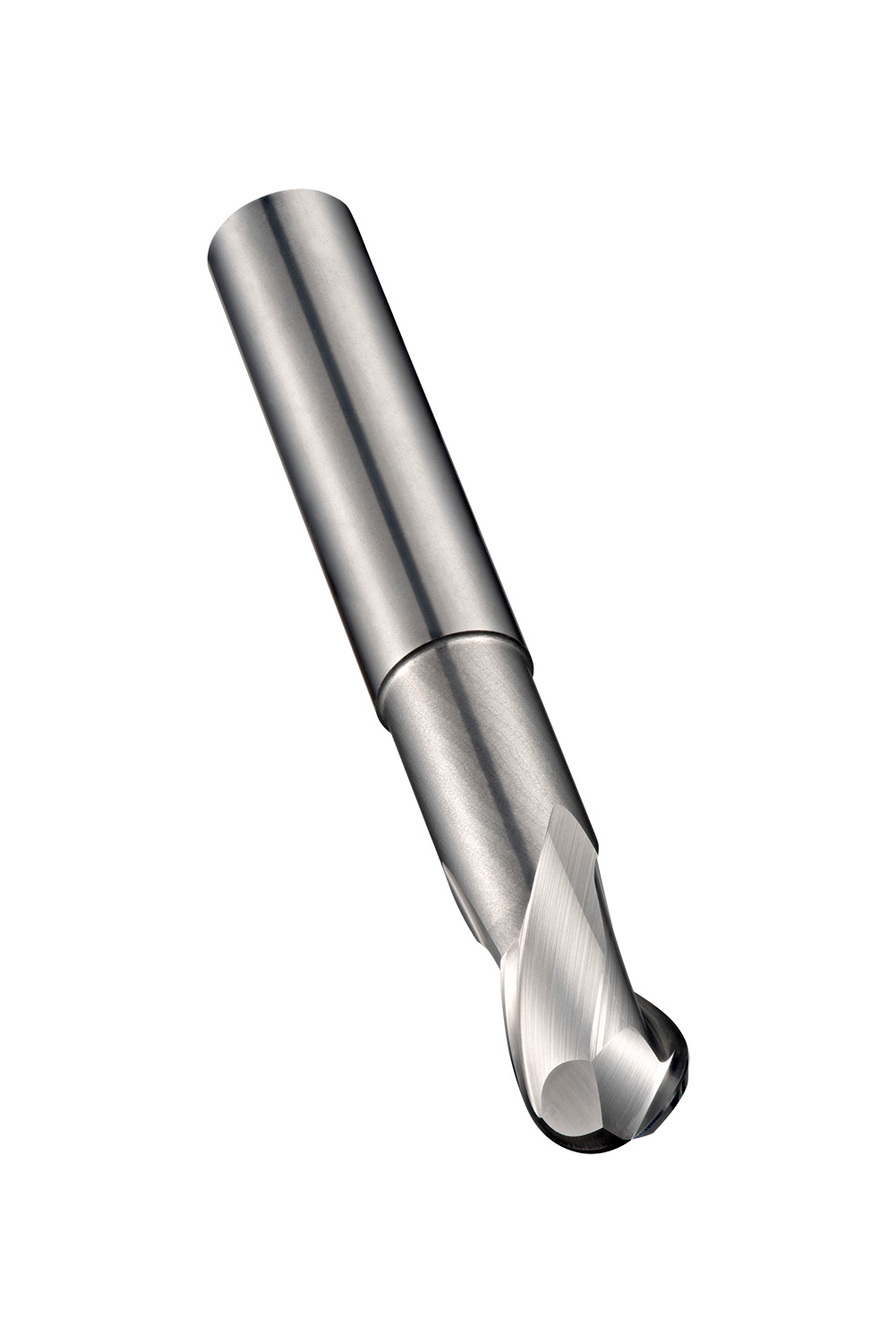

Extra short series ball-nose end mill with 2 flutes, diameter 6mm with 8mm length of cut, 57mm overall length, 20mm reach with neck relief and 3mm full profile radius, according to DORMER standard with a 6mm plain shank, solid carbide with polished finish, 30° helix and 15° rake angle for copy milling in non-ferrous metals

Additional information

Weight 0.0765 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760680827
Product number (SAP): 86021673
Ordering code ANSI: S6296.0
Gross weight – grams: 27.8
Cutting diameter – millimeter (DC): 6 mm
Corner radius – millimeter (RE): 3 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 8 mm
Overall length – millimeter (OAL): 57 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 20 mm
Neck diameter – millimeter (DN): 5.5 mm
Radial rake angle (GAMF): 15
With Neck: Yes
ISO: S6296.0

Brand

DORMER
