DORMER S63710.0 Carbide Cutters

Product Code: S63710.0

$156.35$142.14 Ex. GST

Product Code: S63710.0 SKU S63710.0 Categories , ,
DORMER S63710.0 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

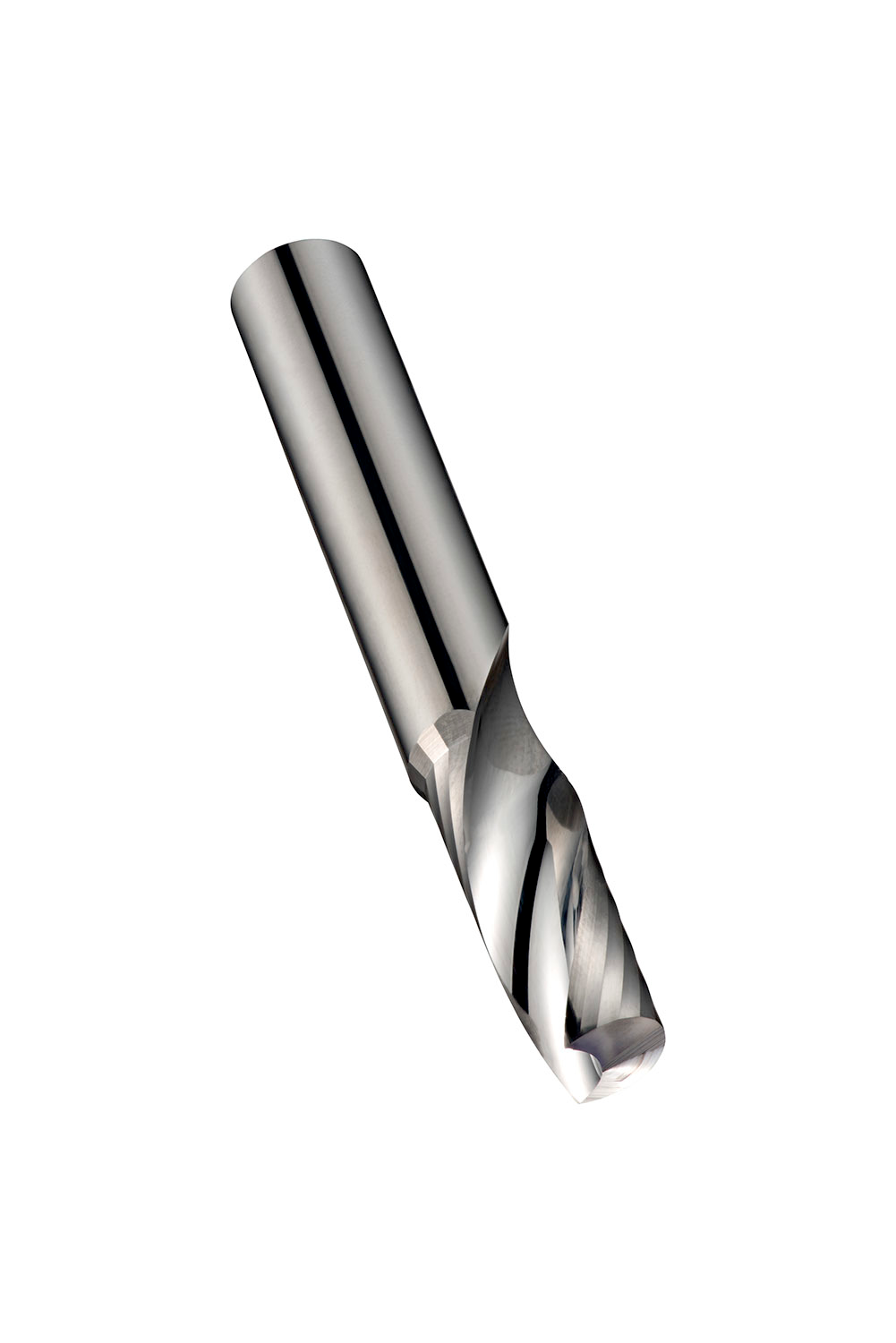

Short series end mill with 1 flute, diameter 10mm with 25mm length of cut and 72mm overall length, according to DORMER standard with a 10mm plain shank, solid carbide with polished finish, 25° helix and 20° rake angle for slot milling in non-ferrous metals

Additional information

Weight 0.1518 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760684276
Product number (SAP): 86022013
Ordering code ANSI: S63710.0
Gross weight – grams: 71
Cutting diameter – millimeter (DC): 10 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 25 mm
Overall length – millimeter (OAL): 72 mm
Flute count (NOF): 1
Radial rake angle (GAMF): 20
With Neck: Yes
ISO: S63710.0

Brand

DORMER
